DS100DF410SQ/NOPB - Texas Instruments

Description: Ethernet Interface 48-WQFN (7x7)

Download DS100DF410SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

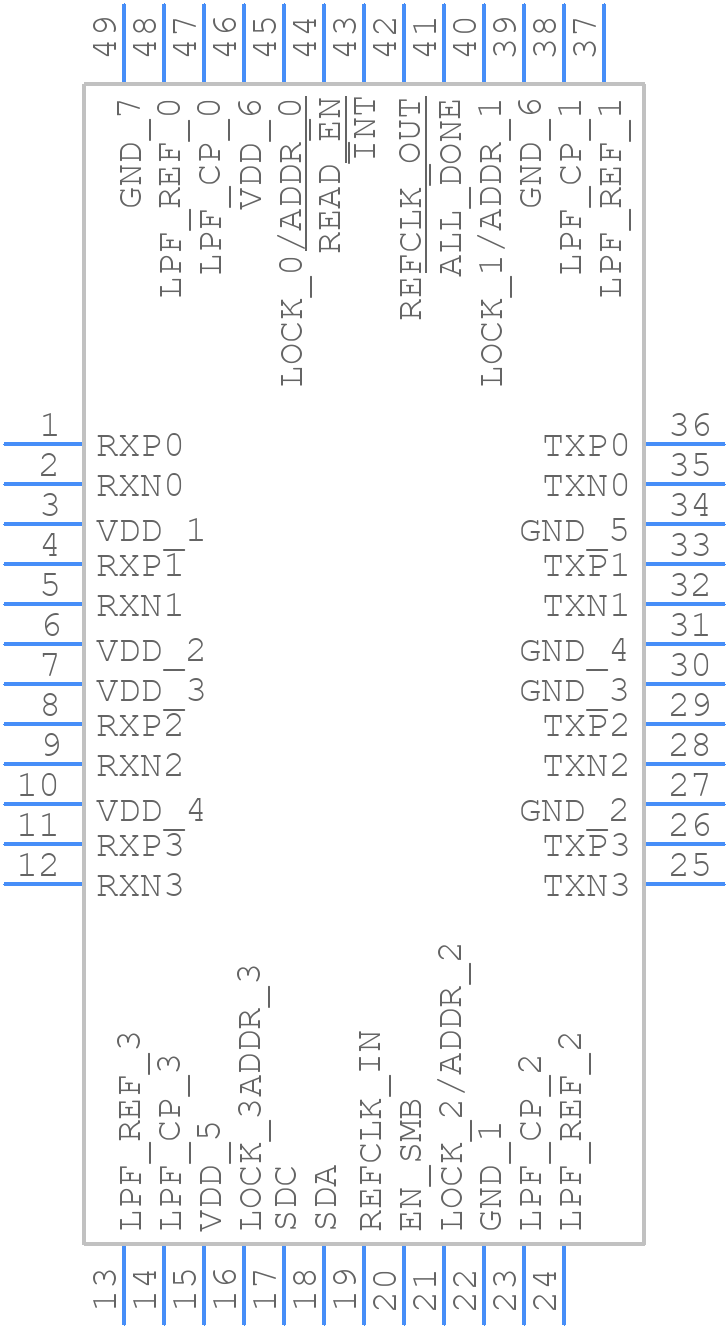

DS100DF410SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS100DF410SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A_2024
click to zoom
3D Models
DS100DF410SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A_2024
click to zoom

DS100DF410SQ/NOPB Details

  • Manufacturer Part Number:

    DS100DF410SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DS100DF410SQ/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output traces should be kept short and away from noise sources.
  • Use controlled impedance traces, minimize trace lengths, and use termination resistors at the receiver end to ensure signal integrity. Also, use a common mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • The maximum cable length supported by the DS100DF410SQ is approximately 40 meters at a data rate of 10 Gbps. However, this can vary depending on the cable quality, signal frequency, and environmental conditions.
  • Use an oscilloscope to check the signal quality and amplitude at the input and output of the device. Check for signal reflections, jitter, and noise. Also, verify that the power supply voltage and current are within the recommended specifications.
  • Yes, the DS100DF410SQ can be used in a redundant or redundant/fail-safe configuration to ensure high availability and reliability in critical applications. However, this requires careful design and implementation to ensure seamless switchover in case of a failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS100DF410SQ/NOPB Overview

Use the download button to access the DS100DF410SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS100, or try a keyword search, such as Other Interface ICs
