Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception. Also, follow best practices for signal routing, such as using differential pairs, and use termination resistors to match the impedance of the transmission lines.
The maximum cable length supported by the DS100RT410SQE depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 10 meters for SGMII and 100 meters for 1000BASE-T. However, it's recommended to consult with a Texas Instruments application engineer for specific guidance on cable length and signal integrity.
The DS100RT410SQE can be configured using the SPI interface. Texas Instruments provides a configuration guide and software development kit (SDK) that includes example code and documentation to help engineers configure the device for their specific application.
The power consumption of the DS100RT410SQE depends on the specific application and operating conditions. The datasheet provides typical power consumption values, but it's recommended to consult with a Texas Instruments application engineer for specific guidance on power consumption and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS100RT410SQE/NOPB Overview

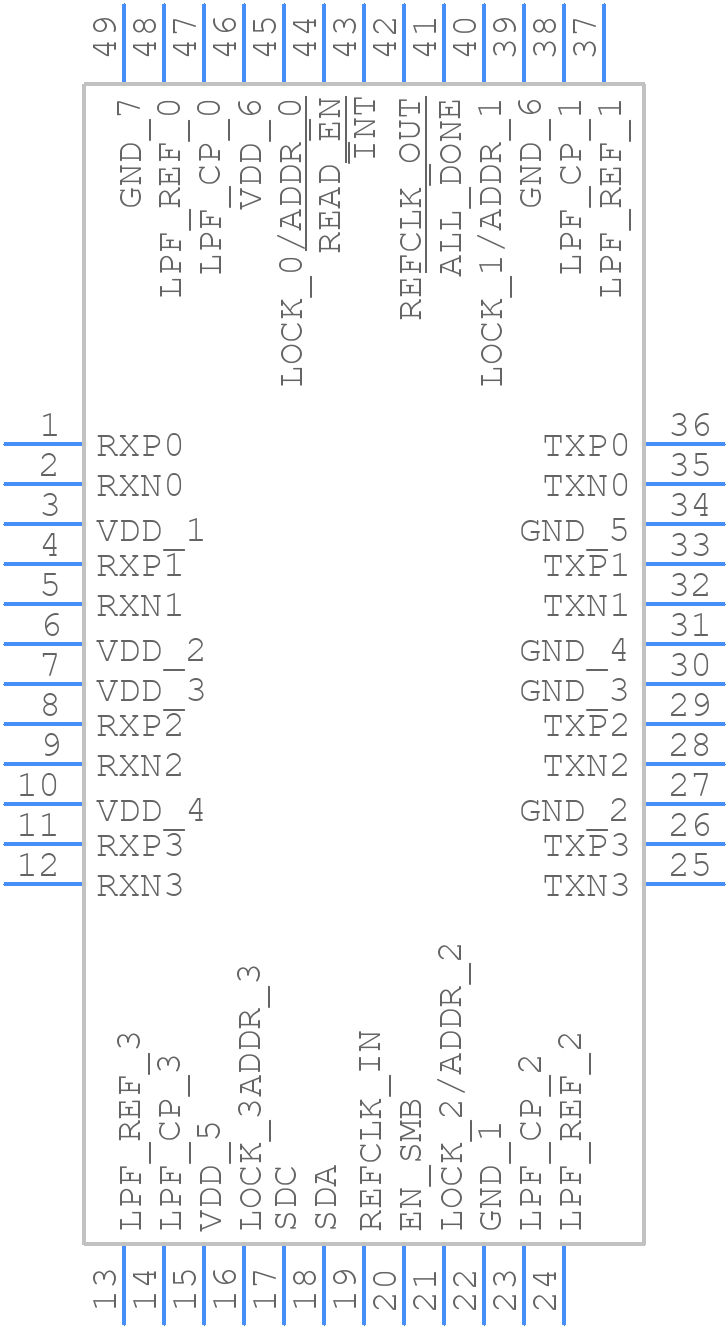

Use the download button to access the DS100RT410SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS100,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
