DS1023S-200+ - Analog Devices

Description: Delay Line IC 1-Shot, Programmable 256 Tap 510ns 16-SOIC (0.295", 7.50mm Width)

Download DS1023S-200+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

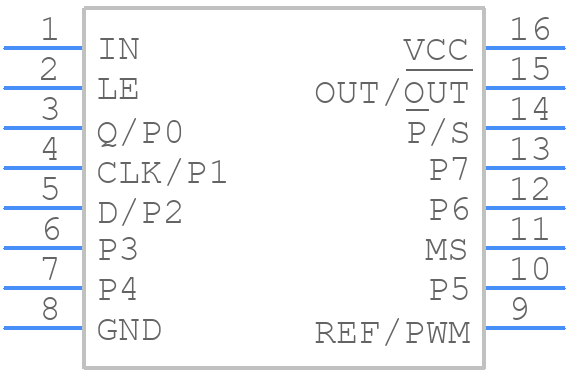

DS1023S-200+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1023S-200+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC (300-mil)
click to zoom
3D Models
DS1023S-200+ - Analog Devices - 3D model - Small Outline Packages - 16-Pin SOIC (300-mil)
click to zoom

DS1023S-200+ Details

  • Manufacturer Part Number:

    DS1023S-200+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    0.300 INCH, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Family:

    CMOS/TTL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Logic IC Type:

    SILICON DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Taps/Steps:

    255

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    60 mA

  • Programmable Delay Line:

    YES

  • Prop. Delay@Nom-Sup:

    527 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    524 ns

  • Width:

    7.5 mm

DS1023S-200+ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • To ensure accurate timing and synchronization, it's essential to use a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), and to follow proper clock distribution and synchronization techniques, such as using a clock buffer or a clock distribution network.
  • The DS1023S-200+ is rated for operation from -40°C to +85°C, but it's essential to consider the specific application and environmental conditions to ensure reliable operation within the specified temperature range.
  • To troubleshoot issues with the DS1023S-200+, it's essential to follow a systematic approach, including checking the power supply, clock input, and output signals, as well as using tools such as oscilloscopes and spectrum analyzers to measure and analyze the signals.
  • The DS1023S-200+ is not specifically designed for radiation-hardened or high-reliability applications, but Analog Devices does offer radiation-hardened and high-reliability versions of some of its products. It's essential to consult with Analog Devices or a qualified radiation effects engineer to determine the suitability of the DS1023S-200+ for such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1023S-200+ Overview

Use the download button to access the DS1023S-200+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS102, or try a keyword search, such as Delay Lines

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
