The recommended operating temperature range for the DS1037-01-15FNAKSI74 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point compatible with the device's lead-free finish, and avoid applying excessive heat or mechanical stress during the soldering process.
The maximum allowable voltage for the DS1037-01-15FNAKSI74's input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may cause damage to the device or affect its performance.
To handle ESD protection for the DS1037-01-15FNAKSI74, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, ensure that the device is properly grounded during assembly and testing.
The typical power consumption of the DS1037-01-15FNAKSI74 is not explicitly stated in the datasheet. However, based on the device's functionality and operating conditions, the power consumption is expected to be relatively low, typically in the range of tens of milliwatts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS1037-01-15FNAKSI74 Overview

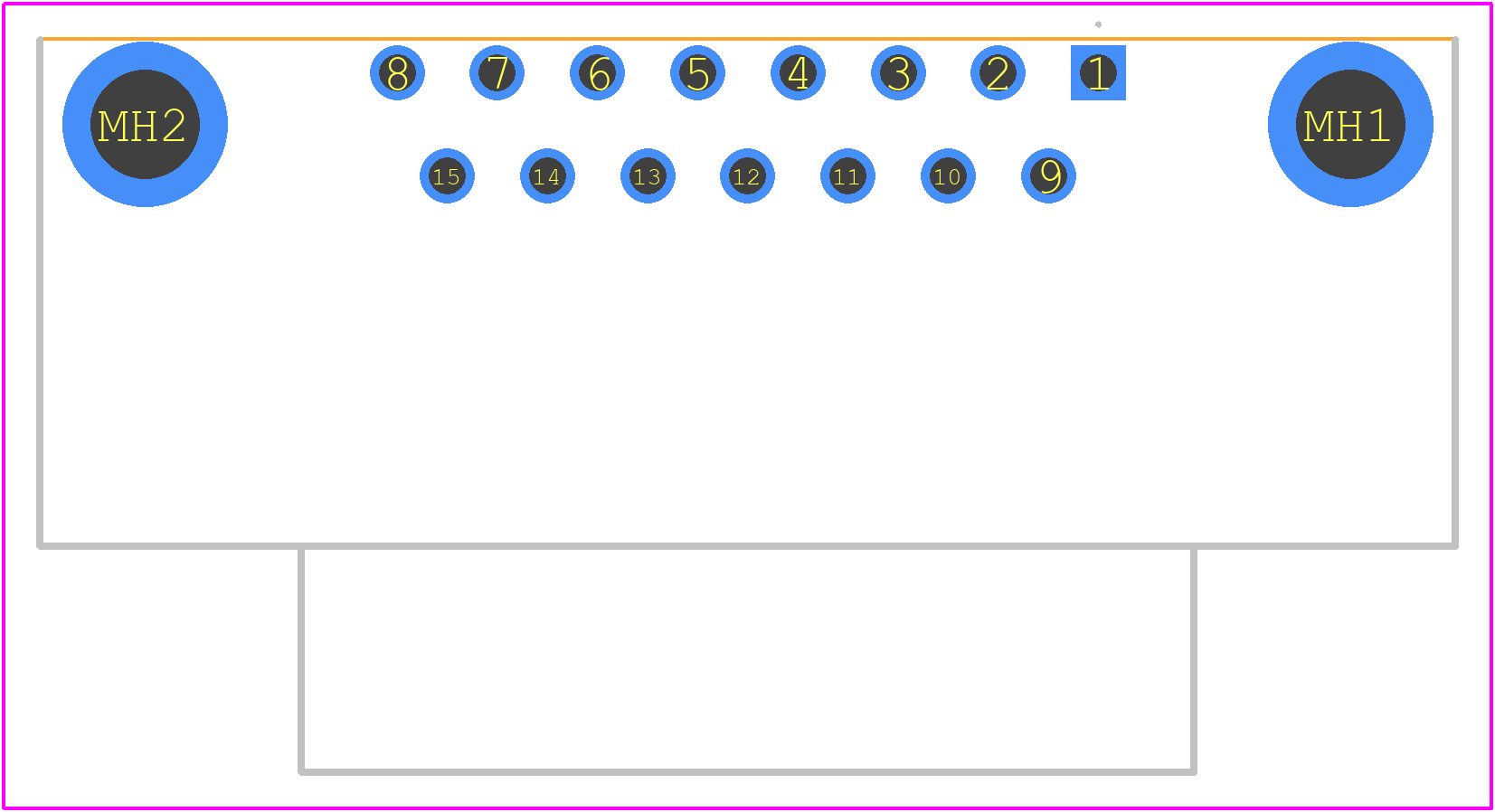

Use the download button to access the DS1037-01-15FNAKSI74 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DS103,
or try a keyword search, such as D Type Connectors
