DS1077Z-120+ - Analog Devices

Description: Programmable Oscillators EconOscillator /Divider

Download DS1077Z-120+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

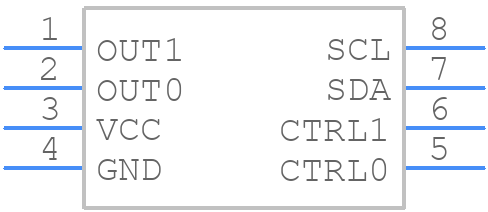

Symbol
DS1077Z-120+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1077Z-120+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin 118-mil uSOP
click to zoom
3D Models
DS1077Z-120+ - Analog Devices - 3D model - Small Outline Packages - 8-Pin 118-mil uSOP
click to zoom

DS1077Z-120+ Details

  • Manufacturer Part Number:

    DS1077Z-120+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    120 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

DS1077Z-120+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the DS1077Z-120+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a low-ESR capacitor for the VCC pin. A 4-layer PCB with a dedicated power plane is recommended.
  • The output capacitor value depends on the output voltage, load current, and desired ripple. A general rule of thumb is to use a capacitor with a value between 10uF to 47uF, with a voltage rating of at least 2x the output voltage. For example, for a 5V output, use a 10uF to 47uF capacitor with a 10V or higher rating.
  • Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the device.
  • To ensure stability, follow the recommended PCB layout, use a low-ESR output capacitor, and add a 1uF to 10uF capacitor between the VIN and GND pins. Additionally, ensure the input voltage is within the recommended range and the output current is within the specified limits.
  • The typical startup time for the DS1077Z-120+ is around 1ms to 2ms, depending on the input voltage, output voltage, and load current. However, this time can vary depending on the specific application and PCB layout.
