DS1077Z-125+ - Analog Devices

Description: Programmable Oscillators EconOscillator /Divider

Download DS1077Z-125+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

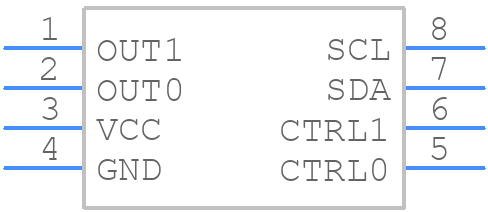

Symbol
DS1077Z-125+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1077Z-125+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
DS1077Z-125+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

DS1077Z-125+ Details

  • Manufacturer Part Number:

    DS1077Z-125+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    125 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

DS1077Z-125+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the DS1077Z-125+. Ensure a solid ground plane, keep the input and output traces short and separate, and use a low-ESR capacitor for the VCC pin. Refer to the datasheet's layout guidelines and application notes for more information.
  • The output capacitor value depends on the output voltage, load current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 10uF to 47uF, with a voltage rating of at least 2x the output voltage. Consult the datasheet's capacitor selection guide for more information.
  • The maximum input voltage for the DS1077Z-125+ is 15V. Exceeding this voltage can cause damage to the device. Ensure that the input voltage is within the recommended range to ensure reliable operation.
  • To ensure stability, follow the datasheet's guidelines for output capacitor selection, input voltage, and PCB layout. Additionally, ensure that the output is properly decoupled, and the device is operated within its recommended operating conditions.
  • The typical startup time for the DS1077Z-125+ is around 10ms to 20ms. However, this can vary depending on the input voltage, output capacitor value, and load current. Consult the datasheet's timing diagrams for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1077Z-125+ Overview

Use the download button to access the DS1077Z-125+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS107, or try a keyword search, such as Clock Generators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
