Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception. Also, follow the recommended PCB layout, use proper termination, and ensure that the signal traces are properly matched to the device's input/output impedance.
The maximum cable length supported by the DS10CP152QMAX/NOPB depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at 10 Gbps, but it's recommended to consult the datasheet and perform signal integrity analysis for specific applications.
To troubleshoot issues with the DS10CP152QMAX/NOPB, start by checking the power supply and clock signals. Verify that the device is properly configured and that the input signals meet the recommended specifications. Use oscilloscopes and logic analyzers to debug the signal transmission and reception. Consult the datasheet and application notes for specific troubleshooting guidelines.
The DS10CP152QMAX/NOPB has a maximum junction temperature of 125°C. To ensure proper thermal management, use a heat sink or thermal pad, and ensure good airflow around the device. Follow the recommended thermal design guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS10CP152QMAX/NOPB Overview

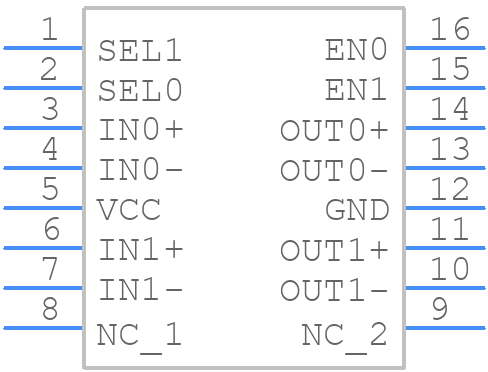

Use the download button to access the DS10CP152QMAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS10C,
or try a keyword search, such as Multiplexers or Switches
