Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
To ensure signal integrity, use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors at the receiver end. Additionally, consider using signal conditioning circuits, such as equalization or filtering, to improve signal quality.
The maximum cable length supported by the DS10CP152TMA/NOPB depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the signal attenuation and dispersion characteristics of the cable. Texas Instruments recommends using cables with a maximum length of 10 meters for optimal performance.
To troubleshoot issues with the DS10CP152TMA/NOPB, use a combination of measurement tools, such as oscilloscopes and signal generators, to analyze the signal quality and identify the source of the problem. Check the PCB layout, cable connections, and termination resistors for any issues. Consult the datasheet and application notes for troubleshooting guidelines and tips.
The DS10CP152TMA/NOPB is a PCIe-compliant repeater, and its performance is optimized for PCIe applications. While it may be possible to use it in a non-compliant PCIe application, it's not recommended, as it may not meet the required signal integrity and performance specifications. Consult with Texas Instruments or a qualified engineer to determine the feasibility of using the DS10CP152TMA/NOPB in a non-compliant PCIe application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS10CP152TMA/NOPB Overview

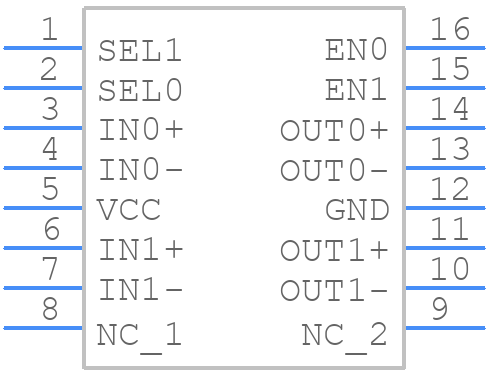

Use the download button to access the DS10CP152TMA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS10C,
or try a keyword search, such as Multiplexers or Switches
