Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a 50-ohm transmission line impedance and to avoid vias and stubs in the signal path.
To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
When using the DS10CP152TMAX/NOPB in a system with multiple clock domains, it's essential to ensure that the clock signals are properly synchronized and that the device is configured to handle the clock domain crossings. This may require additional circuitry or logic to ensure reliable operation.
To troubleshoot issues with the DS10CP152TMAX/NOPB, it's recommended to use oscilloscopes and other test equipment to analyze the signal waveforms and jitter. Additionally, checking the device's configuration and setup, as well as the PCB layout and signal routing, can help identify and resolve issues.
Yes, when using the DS10CP152TMAX/NOPB, it's essential to follow proper EMI/EMC design practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with relevant standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS10CP152TMAX/NOPB Overview

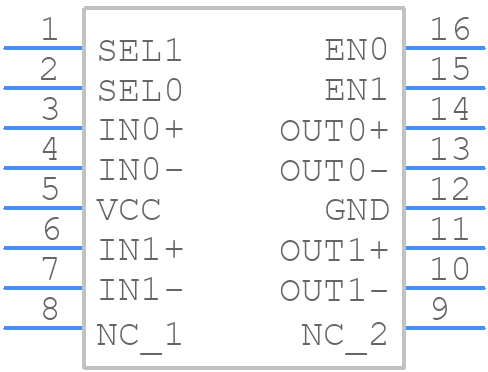

Use the download button to access the DS10CP152TMAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS10C,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
