DS10CP154ATSQ/NOPB - Texas Instruments

Description: 1.5 Gbps 4x4 LVDS Crosspoint Switch

Download DS10CP154ATSQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

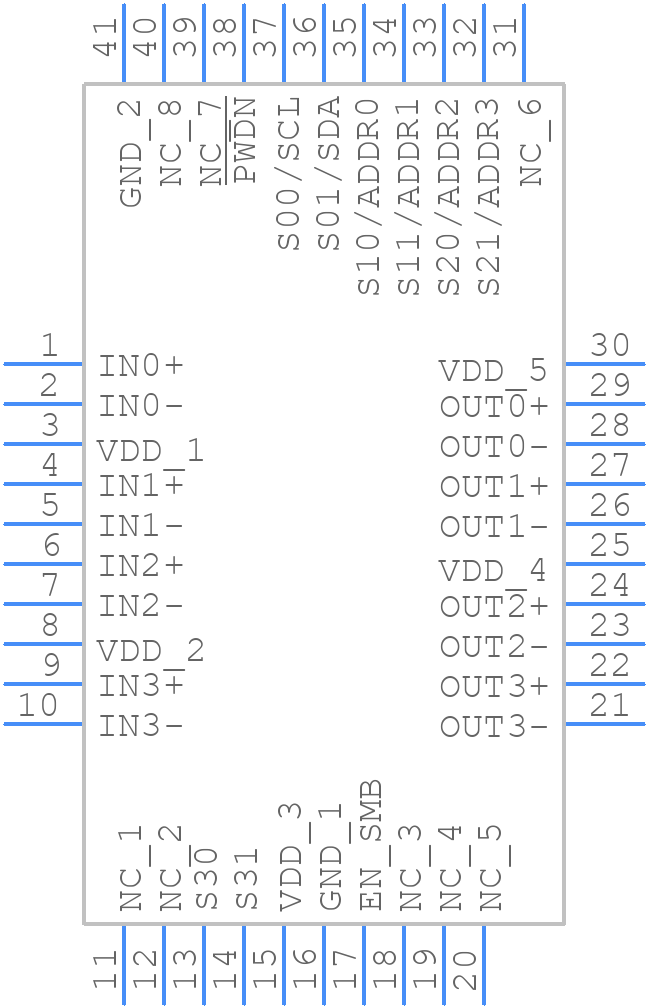

DS10CP154ATSQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS10CP154ATSQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTA0040A_
click to zoom
3D Models
DS10CP154ATSQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTA0040A_
click to zoom

DS10CP154ATSQ/NOPB Details

  • Manufacturer Part Number:

    DS10CP154ATSQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • Input Voltage-Max:

    1 V

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Off-state Isolation-Nom:

    60 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    140 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    20000 ns

  • Switch-on Time-Max:

    20000 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DS10CP154ATSQ/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS10CP154ATSQ/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use termination resistors as needed. Also, ensure that the signal lines are not routed near noise sources or high-current paths.
  • The DS10CP154ATSQ/NOPB is rated for operation from -40°C to 85°C. However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this range.
  • The DS10CP154ATSQ/NOPB is designed to operate at a clock frequency of 154.08 MHz. While it may be possible to use it with a different clock frequency, this may require additional circuitry and may affect the device's performance and power consumption.
  • To troubleshoot issues with the DS10CP154ATSQ/NOPB, start by verifying the power supply and clock signals. Check the device's output signals using an oscilloscope, and ensure that the PCB layout and signal routing are correct. Consult the datasheet and application notes for troubleshooting guidelines.
