DS1100Z-50+ - Analog Devices

Description: DS1100Z-50+, Delay Line Circuit, 5-Taps 500ns 5-Input, 8-Pin SOIC

Download DS1100Z-50+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

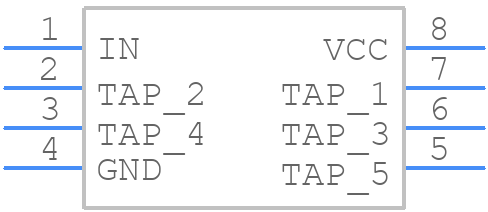

DS1100Z-50+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1100Z-50+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - -8 so
click to zoom
3D Models
DS1100Z-50+ - Analog Devices - 3D model - Small Outline Packages - -8 so
click to zoom

DS1100Z-50+ Details

  • Manufacturer Part Number:

    DS1100Z-50+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-09-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    1100

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    SILICON DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Taps/Steps:

    5

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance-Nom (Z0):

    50 Ω

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Programmable Delay Line:

    NO

  • Prop. Delay@Nom-Sup:

    50 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    50 ns

  • Width:

    3.9 mm

DS1100Z-50+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1100Z-50+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy thermistor, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the thermistor should be placed close to the device being measured.
  • The maximum cable length for the DS1100Z-50+ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length below 10 meters to minimize signal attenuation and noise pickup. If a longer cable is required, it's recommended to use a shielded cable and a signal repeater or amplifier.
  • Yes, the DS1100Z-50+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB or chassis to prevent mechanical stress and damage. Additionally, the device should be operated within its specified temperature range, and the PCB should be designed to withstand the vibration.
  • To troubleshoot common issues with the DS1100Z-50+, start by checking the power supply voltage, ensuring that it's within the specified range. Then, verify that the device is properly configured and that the communication protocol is correct. Check the thermistor connection and ensure that it's not damaged or loose. If the issue persists, consult the datasheet and application notes for troubleshooting guides and contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1100Z-50+ Overview

Use the download button to access the DS1100Z-50+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS110, or try a keyword search, such as Delay Lines

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
