DS110DF111SQ/NOPB - Texas Instruments

Description: DS110DF111 Low Power Multi-Rate Two-Channel Retimer

Download DS110DF111SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

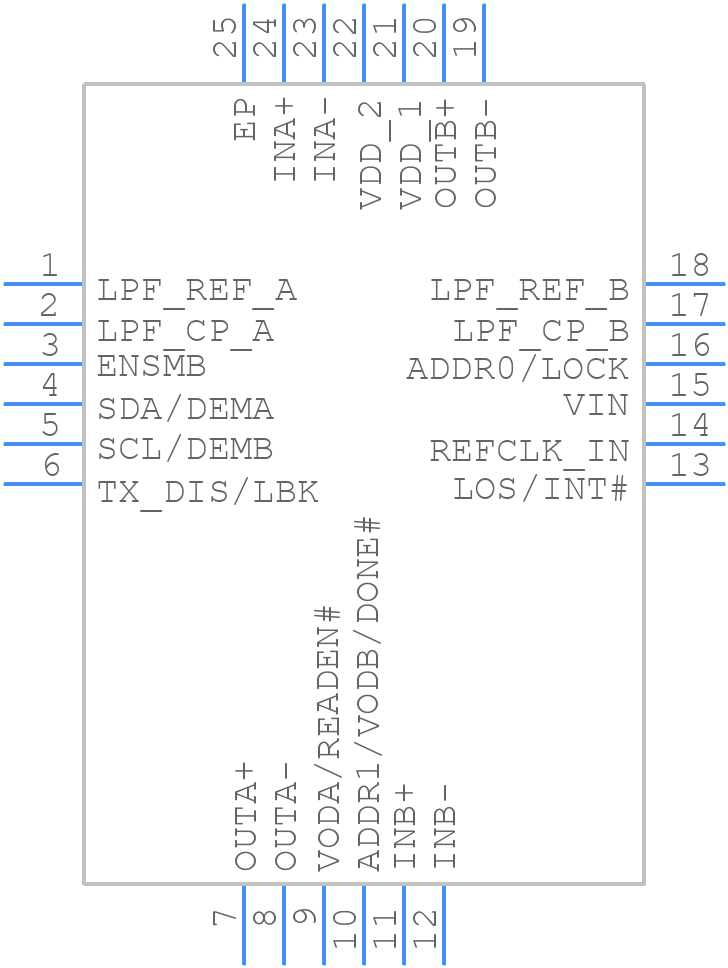

DS110DF111SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS110DF111SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A WQFN
click to zoom
3D Models
DS110DF111SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A WQFN
click to zoom

DS110DF111SQ/NOPB Details

  • Manufacturer Part Number:

    DS110DF111SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS110DF111SQ/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and a shielded cable to minimize EMI.
  • The DS110DF111SQ/NOPB requires a single 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. The power sequencing requirement is to power up the 3.3V supply before the clock signal.
  • The maximum cable length supported by the DS110DF111SQ/NOPB is 10 meters, and it's recommended to use a shielded cable with a characteristic impedance of 100 ohms to minimize signal reflections and EMI.
  • The DS110DF111SQ/NOPB can be configured using the SPI interface, and the configuration depends on the specific application requirements. Texas Instruments provides a configuration tool and a user guide to help with the configuration process.
  • The DS110DF111SQ/NOPB has a recommended operating temperature range of -40°C to 85°C, and it's recommended to use a heat sink or a thermal pad to ensure the device operates within this range. Additionally, it's recommended to follow the thermal design guidelines provided by Texas Instruments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS110DF111SQ/NOPB Overview

Use the download button to access the DS110DF111SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS110, or try a keyword search, such as Other Interface ICs
