Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a differential signal pair for the clock and data signals, keep the signal traces short and matched, and use a common mode filter or common mode choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS110DF1610FB/NOPB depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the signal attenuation and distortion caused by the cable. Texas Instruments recommends using a cable length of up to 10 meters for most applications.
To troubleshoot issues with the DS110DF1610FB/NOPB, use a logic analyzer or oscilloscope to monitor the signal waveforms, check the power supply voltage and current, and verify that the device is properly configured and terminated. Texas Instruments also provides a troubleshooting guide in the datasheet.
Yes, the DS110DF1610FB/NOPB is compatible with other Texas Instruments devices, such as the DS100DF160BM/NOPB and the DS100DF1610BM/NOPB. However, it's recommended to verify the compatibility of the specific devices and configurations in your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS110DF1610FB/NOPB Overview

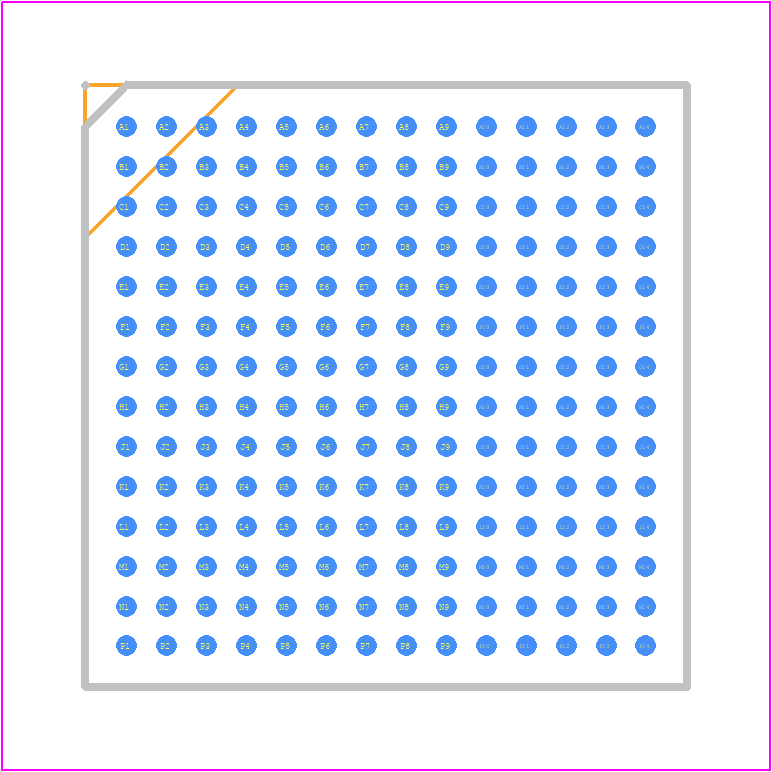

Use the download button to access the DS110DF1610FB/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS110,
or try a keyword search, such as Other Interface ICs
