DS110DF410SQ/NOPB - Texas Instruments

Description: 8.5 to 11.3 Gbps Quad Channel Retimer with Adaptive EQ, CDR and DFE

Download DS110DF410SQ/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

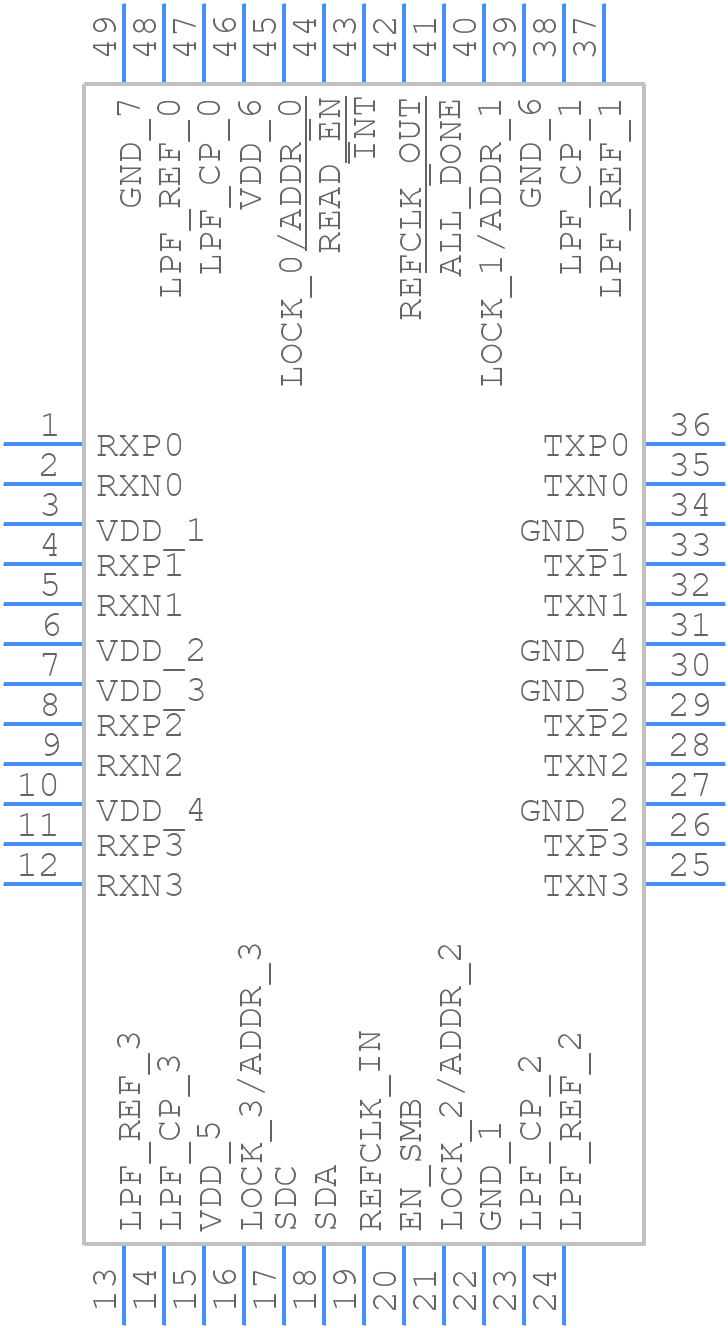

DS110DF410SQ/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS110DF410SQ/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
DS110DF410SQ/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

DS110DF410SQ/NOPB Details

  • Manufacturer Part Number:

    DS110DF410SQ/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DS110DF410SQ/NOPB Frequently Asked Questions (FAQs)

  • The maximum power consumption of the DS110DF410SQ/NOPB is 1.4W, which is relatively low and suitable for power-sensitive applications.
  • To ensure signal integrity with the DS110DF410SQ/NOPB, it's essential to follow proper PCB design guidelines, use differential signaling, and implement proper termination and filtering techniques.
  • Yes, the DS110DF410SQ/NOPB supports multi-lane configurations, allowing you to aggregate multiple lanes to achieve higher data rates and increase system bandwidth.
  • The maximum cable length supported by the DS110DF410SQ/NOPB is up to 10 meters, depending on the specific application and cable characteristics.
  • To troubleshoot issues with the DS110DF410SQ/NOPB, use tools like oscilloscopes and logic analyzers to analyze signal quality and timing, and consult the datasheet and application notes for guidance on common issues and solutions.
