Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception, and follow best practices for signal routing, such as using differential pairs, and minimizing crosstalk and electromagnetic interference (EMI).
The maximum cable length supported by the DS110RT410SQE depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping the cable length as short as possible, but it can support up to 10 meters of cable length at a data rate of 10 Gbps.
To troubleshoot issues with the DS110RT410SQE, use a logic analyzer or an oscilloscope to capture and analyze the signals, and check the device's configuration and register settings. Texas Instruments also provides a troubleshooting guide in the datasheet and application notes.
The power consumption of the DS110RT410SQE depends on the specific application and the operating conditions. The datasheet provides a detailed power consumption table, but as a general guideline, the device consumes around 1.2 W at a data rate of 10 Gbps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS110RT410SQE/NOPB Overview

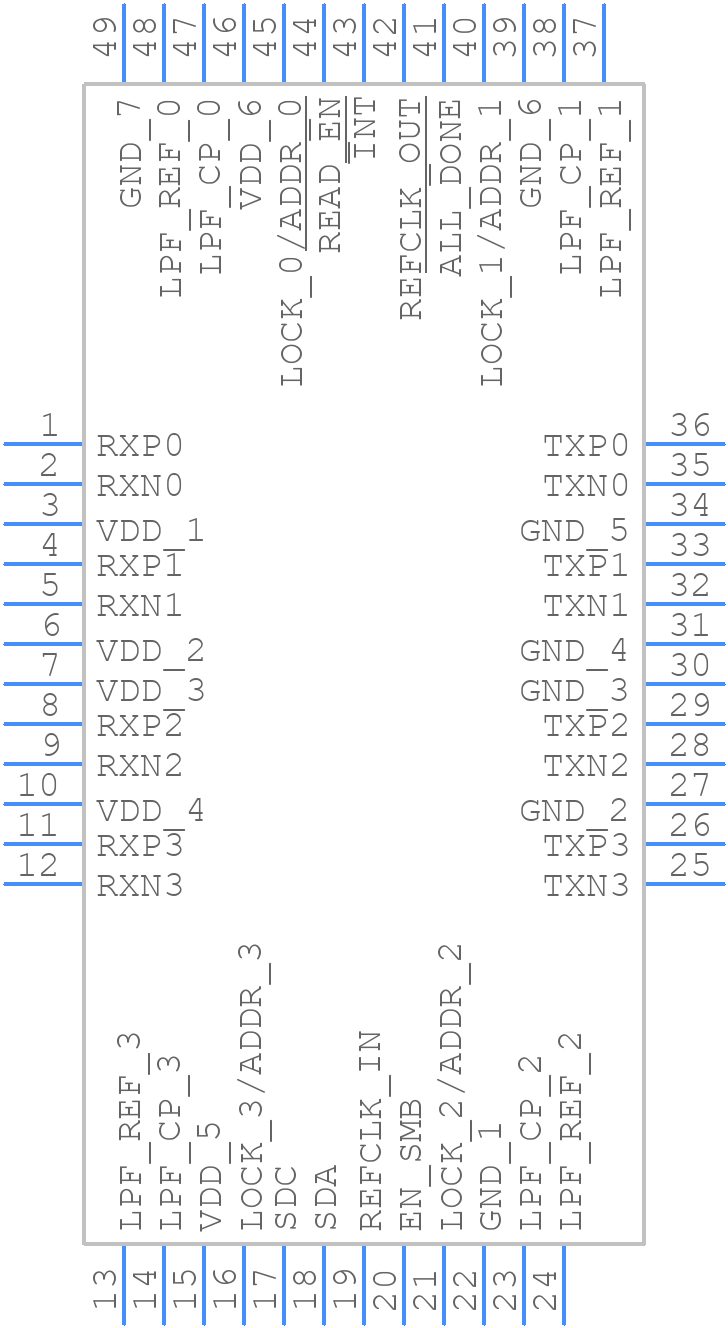

Use the download button to access the DS110RT410SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS110,
or try a keyword search, such as Other Interface ICs
