DS1128-06-S8B0P-X - Connfly

DS1128-06-S8B0P-X Details

• Manufacturer Part Number:

  DS1128-06-S8B0P-X

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Ningbo connfly electronic CO LTD

• Board Mounting Option:

  HOLE 0.126

• Body Breadth:

  0.52 inch

• Body Depth:

  0.62 inch

• Body Length:

  0.65 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  RJ CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  TELCOM, MODULAR

• Dielectric Withstanding Voltage:

  707VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

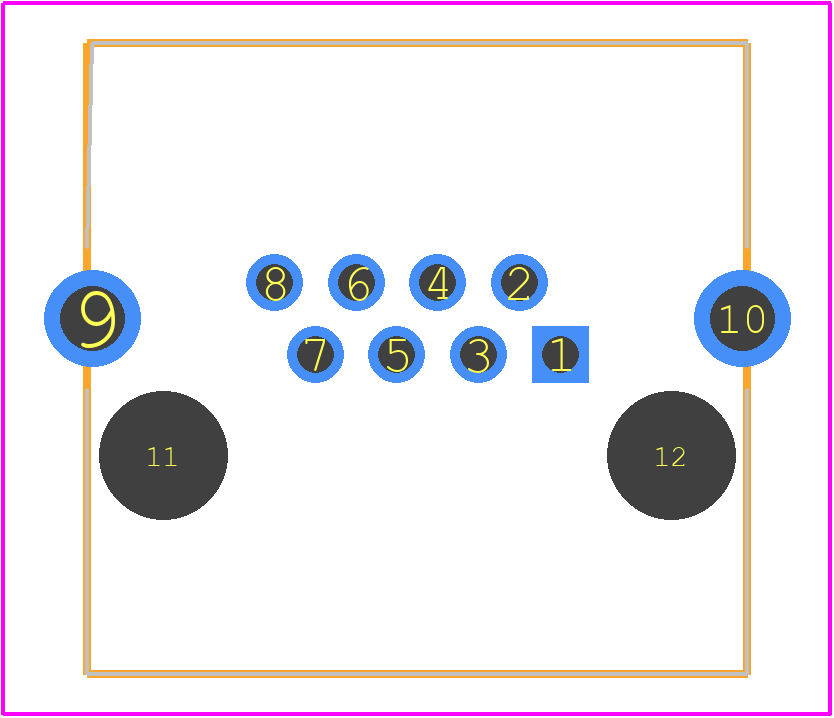

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.78 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Terminal Length:

  0.136 inch

• Terminal Pitch:

  2.04 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8
