DS1232LPSN-2+ - Analog Devices

Description: Supervisory Circuits Low-Power MicroMonitor Chip

Download DS1232LPSN-2+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

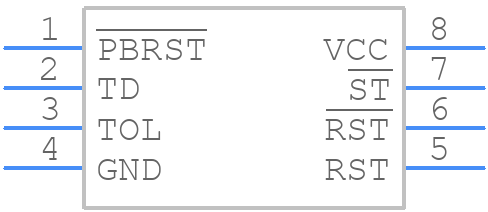

DS1232LPSN-2+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1232LPSN-2+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8+2
click to zoom
3D Models
DS1232LPSN-2+ - Analog Devices - 3D model - Small Outline Packages - S8+2
click to zoom

DS1232LPSN-2+ Details

  • Manufacturer Part Number:

    DS1232LPSN-2+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    PUSHBUTTON RESET OPTION

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.37V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DS1232LPSN-2+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the DS1232LPSN-2+ can be found in the application note AN-1009 from Analog Devices, which provides guidelines for proper PCB design and layout to ensure optimal performance and minimize noise.
  • The DS1232LPSN-2+ has a thermal shutdown feature that protects the device from overheating. To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines provided in the datasheet.
  • The recommended input voltage range for the DS1232LPSN-2+ is 4.5V to 5.5V, although the device can operate with an input voltage as low as 4.2V. However, operating the device at the lower end of the input voltage range may affect its performance and accuracy.
  • To ensure the accuracy of the DS1232LPSN-2+ over temperature, use a high-accuracy external voltage reference, and follow the calibration and compensation procedures outlined in the datasheet. Additionally, consider using a temperature sensor to monitor the device temperature and adjust the output accordingly.
  • The typical start-up time for the DS1232LPSN-2+ is around 10ms, although this can vary depending on the input voltage, output load, and other factors. The start-up time can be critical in certain applications, so it's essential to verify the start-up time in your specific use case.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1232LPSN-2+ Overview

Use the download button to access the DS1232LPSN-2+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS123, or try a keyword search, such as Power Management Circuits
