DS1232LPSN-2+T&R - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS1232LPSN-2+T&R - MPU Supervisor, 4.5V-5.5V supply, Active-High/Low, Open-Drain, 610 ms delay/4.62V threshold, NSOIC-8

Download DS1232LPSN-2+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

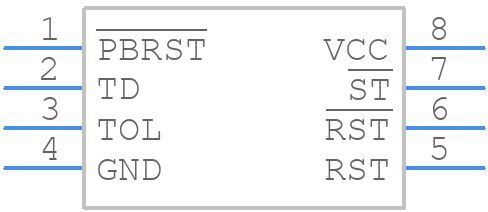

Symbol
DS1232LPSN-2+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1232LPSN-2+T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
DS1232LPSN-2+T&R - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

DS1232LPSN-2+T&R Details

  • Manufacturer Part Number:

    DS1232LPSN-2+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    PUSHBUTTON RESET OPTION

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    4.37/4.62

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DS1232LPSN-2+T&R Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the device away from high-current paths and noise sources. Place decoupling capacitors close to the device, and use a solid ground plane to minimize noise and EMI.
  • Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended thermal resistance values. Also, consider derating the device's performance at high temperatures, as specified in the datasheet.
  • The device can operate with multiple power domains, but ensure that the voltage rails are properly isolated and decoupled. Use level shifters or voltage translators if necessary, and follow the recommended power-up and power-down sequences.
  • Start by verifying the device's configuration and programming. Check the power supply and decoupling, and ensure that the device is properly connected and terminated. Use oscilloscopes or logic analyzers to debug the issue, and consult the datasheet and application notes for guidance.
  • Yes, take measures to minimize the impact of high-frequency signals and RF interference. Use shielding, filtering, and decoupling to reduce noise, and consider using a Faraday cage or RF-absorbing materials. Follow proper PCB design and layout practices to minimize radiation and coupling.
