A good PCB layout for the DS125DF1610FB/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Texas Instruments provides a recommended PCB layout in the datasheet and application notes.
To ensure signal integrity with the DS125DF1610FB/NOPB, use controlled impedance traces, minimize trace lengths, and use terminations as needed. Also, ensure that the signal frequencies are within the device's specified bandwidth.
The DS125DF1610FB/NOPB has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device during soldering or rework.
Yes, the DS125DF1610FB/NOPB can be used in redundant or fault-tolerant systems. However, ensure that the system design takes into account the device's specifications, such as its latency and jitter, to ensure reliable operation.
To troubleshoot issues with the DS125DF1610FB/NOPB, start by checking the power supply, clock signals, and signal integrity. Use oscilloscopes and logic analyzers to debug the signals, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS125DF1610FB/NOPB Overview

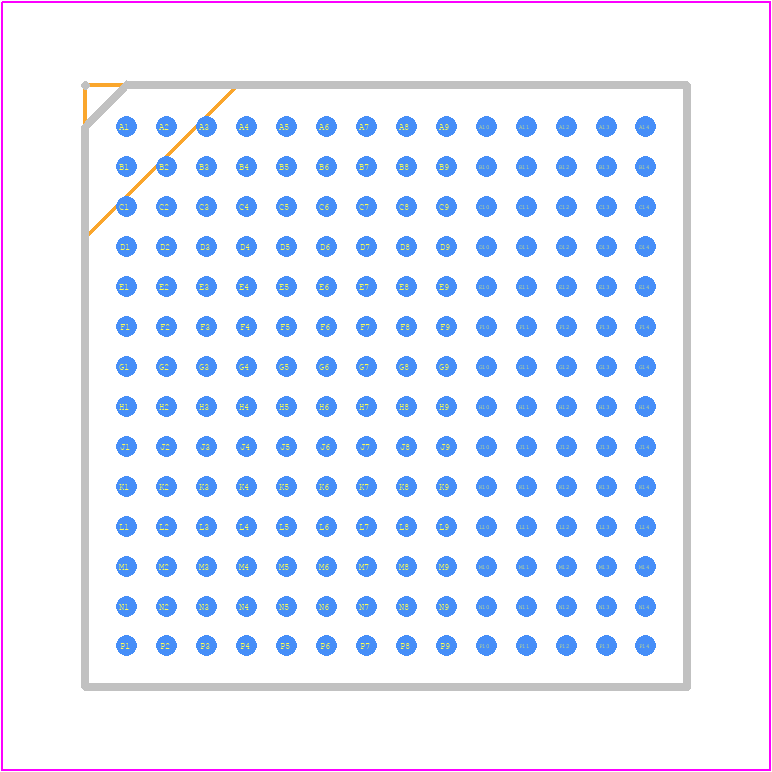

Use the download button to access the DS125DF1610FB/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS125,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
