A good PCB layout for the DS125DF410SQE involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use terminations as needed. Also, keep the signal traces away from power planes and use shielding if necessary. Additionally, use a common mode filter or a transformer to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS125DF410SQE depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at 10 Gbps and up to 50 meters at 25 Gbps.
To troubleshoot issues with the DS125DF410SQE, start by checking the power supply and clocking signals. Verify that the device is properly configured and that the signal integrity is maintained. Use oscilloscopes and logic analyzers to debug the signals. Also, check the device's temperature and ensure it is within the recommended operating range.
The DS125DF410SQE has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be mounted on a PCB with a thermal pad connected to a solid ground plane. A heat sink or a thermal interface material can be used to improve heat dissipation. Ensure good airflow around the device and avoid blocking the airflow.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS125DF410SQE/NOPB Overview

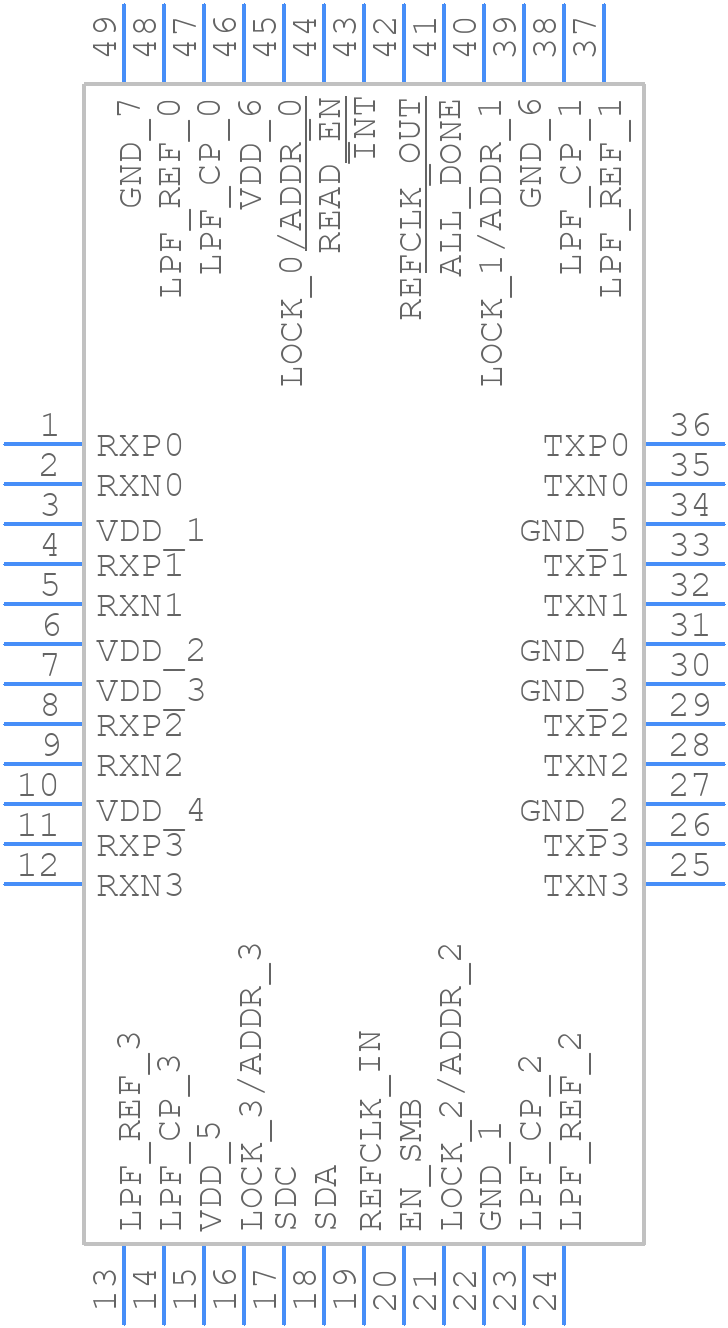

Use the download button to access the DS125DF410SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS125,
or try a keyword search, such as Other Interface ICs
