Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors as recommended in the datasheet. Additionally, consider using signal conditioning components, such as filters or equalizers, to improve signal quality.
The maximum operating temperature range for the DS125RT410SQ/NOPB is -40°C to 125°C, but it's recommended to operate within the recommended operating temperature range of -40°C to 85°C for optimal performance and reliability.
To troubleshoot issues, start by verifying the PCB design and layout, checking for signal reflections, and ensuring proper termination. Use oscilloscopes or logic analyzers to analyze the signal quality and identify potential issues. Consult the datasheet and application notes for troubleshooting guidelines and contact Texas Instruments support if necessary.
The DS125RT410SQ/NOPB is not specifically designed for radiation-hardened or high-reliability applications. However, Texas Instruments offers other products that are designed for such applications. Consult with Texas Instruments support to determine the best solution for your specific requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS125RT410SQ/NOPB Overview

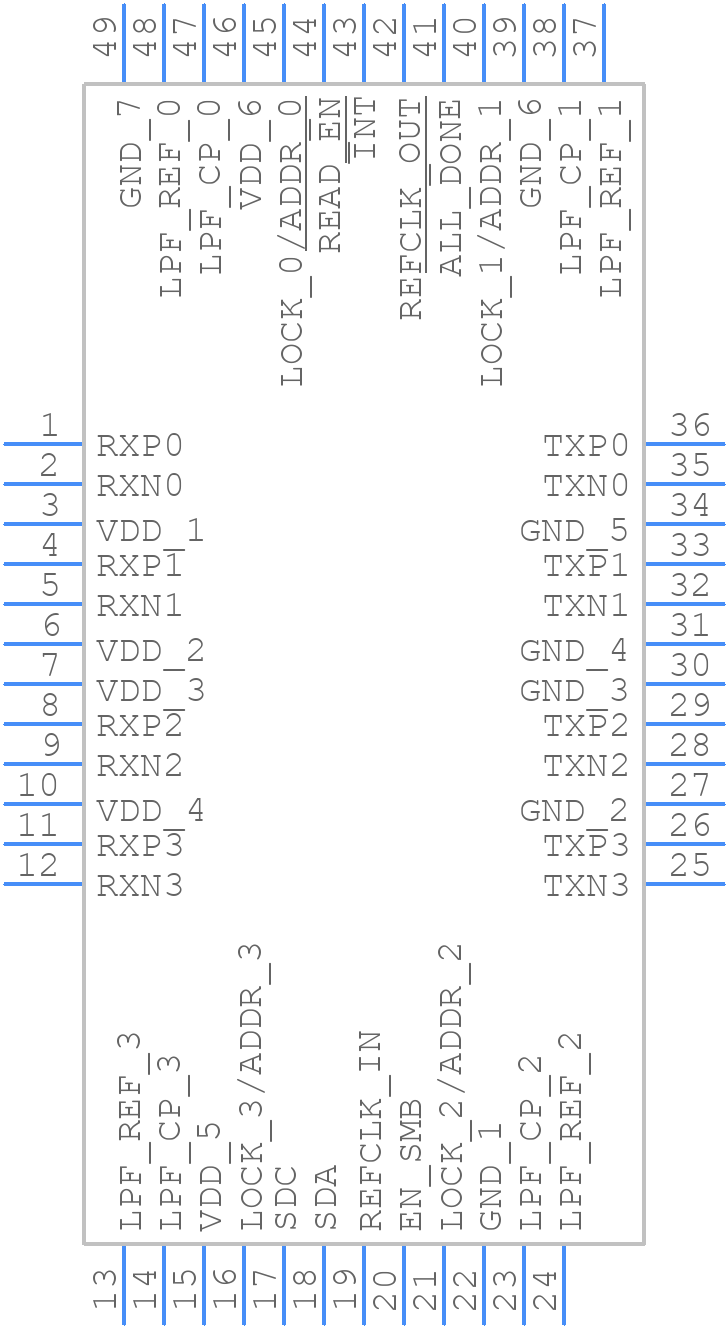

Use the download button to access the DS125RT410SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS125,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
