DS125RT410SQE/NOPB - Texas Instruments

Description: 9.8 to 12.5 Gbps Quad Channel Retimer with Adaptive EQ and CDR

Download DS125RT410SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

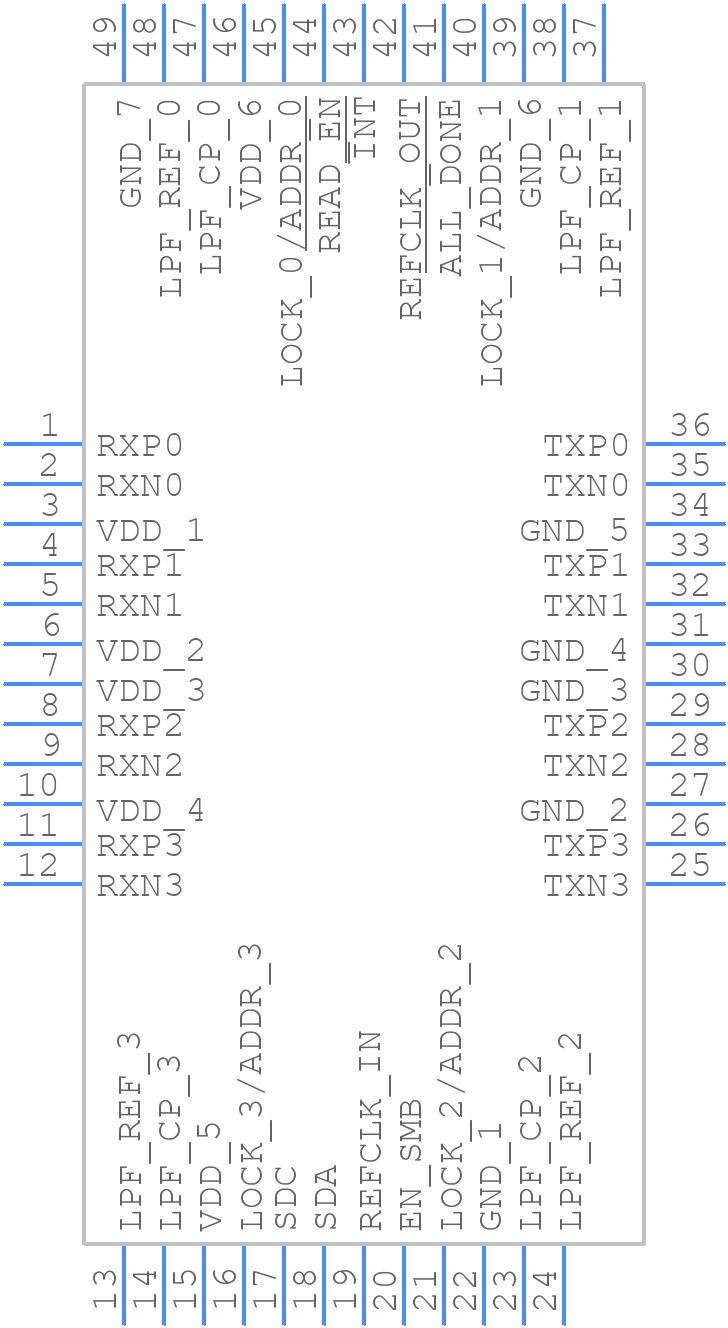

Symbol
DS125RT410SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS125RT410SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom
3D Models
DS125RT410SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RHS0048A HEIGHT=0.8
click to zoom

DS125RT410SQE/NOPB Details

  • Manufacturer Part Number:

    DS125RT410SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DS125RT410SQE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use controlled impedance traces, keep the signal traces short and matched, and use termination resistors at the receiver end. Also, use a common clock and data signal routing to minimize skew.
  • The maximum cable length depends on the signal frequency and the cable characteristics. As a general guideline, the DS125RT410SQE can support cable lengths up to 10 meters at 10 Gbps and up to 5 meters at 25 Gbps.
  • Use an oscilloscope to check the signal integrity, and a logic analyzer to verify the data transmission. Check the power supply voltage and the PCB layout for any issues. Also, consult the Texas Instruments support resources and application notes for troubleshooting guides.
  • Yes, the DS125RT410SQE is a versatile device that can be used in non-PCIe applications such as high-speed data transmission, backplane connectivity, and optical module applications. However, the device must be configured and used in accordance with the specific application requirements.
