DS1372U+ - Analog Devices

Description: Maxim DS1372U+ Real Time Clock — Binary Counter 8-Pin μMAX

Download DS1372U+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

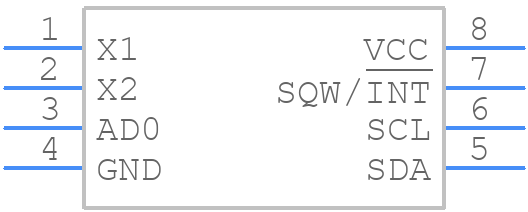

Symbol
DS1372U+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1372U+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 uSOP
click to zoom
3D Models
DS1372U+ - Analog Devices - 3D model - Small Outline Packages - 8 uSOP
click to zoom

DS1372U+ Details

  • Manufacturer Part Number:

    DS1372U+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-08-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    Y

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

DS1372U+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VBAT. This ensures that the internal registers are properly initialized and the device operates correctly.
  • In this case, the device will automatically switch to battery-backed mode, and the internal registers will be maintained. However, it's recommended to ensure that VBAT is always higher than or equal to VCC to prevent any potential issues.
  • The RST pin is an active-low reset input that resets the device and clears all registers. It can be used to reset the device in case of a fault or to initialize the device during power-up. A low pulse on the RST pin (typically 1-2 ms) is required to reset the device.
  • To ensure accurate timekeeping, it's essential to use a high-quality crystal oscillator and to follow the recommended crystal loading and layout guidelines. Additionally, the device should be calibrated periodically to account for any crystal frequency deviations.
  • The maximum allowed capacitance on the X1 and X2 pins is 15 pF. Exceeding this limit can affect the oscillator's start-up time and frequency stability, leading to inaccurate timekeeping. It's essential to follow the recommended layout and component selection guidelines to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS1372U+ Overview

Use the download button to access the DS1372U+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS137, or try a keyword search, such as Timers or RTCs
