DS1374C-33# - Analog Devices

Description: Maxim DS1374C-33# Real Time Clock — Battery Backup, Clock, NV Timekeeping RAM, 3B RAM 16-Pin SOIC

Download DS1374C-33# Model
Schematic

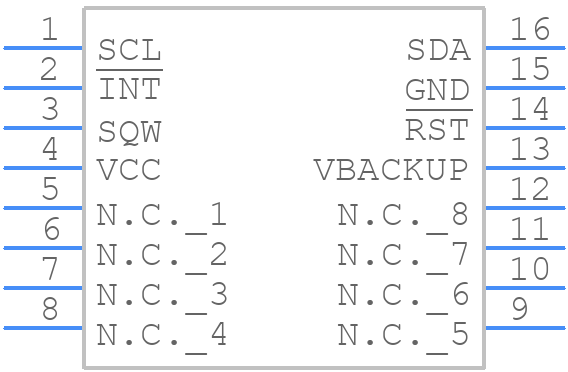

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DS1374C-33# - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16#H2
click to zoom
3D Models
DS1374C-33# - Analog Devices  - 3D model - Small Outline Packages - W16#H2
click to zoom

DS1374C-33# Details

  • Manufacturer Part Number:

    DS1374C-33#

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-04-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

DS1374C-33# Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VBAT. This ensures that the internal registers are properly initialized and the device operates correctly.
  • In this case, the device will automatically switch to battery-backed mode, and the internal registers will be maintained. However, it's recommended to ensure that VBAT is always higher than or equal to VCC to prevent any potential issues.
  • The maximum capacitance value that can be connected to the X1 and X2 pins is 20pF. Exceeding this value may affect the oscillator's stability and accuracy.
  • To minimize power consumption, set the EOSC bit in the Control Register to 1, which disables the oscillator. Additionally, ensure that the VCC pin is powered down or set to a low voltage state.
  • The recommended layout and routing for the crystal oscillator circuit is to keep the X1 and X2 pins as close as possible to the crystal, and to use short, low-impedance traces to minimize noise and interference. Additionally, ensure that the crystal is placed away from any high-frequency signals or noise sources.
