DS15BA101SDE/NOPB - Texas Instruments

Description: Texas Instruments DS15BA101SDE/NOPB, LVDS Buffer CML/ LVDS/ LVPECL 2Gbit/s, 8-Pin, LLP

Download DS15BA101SDE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

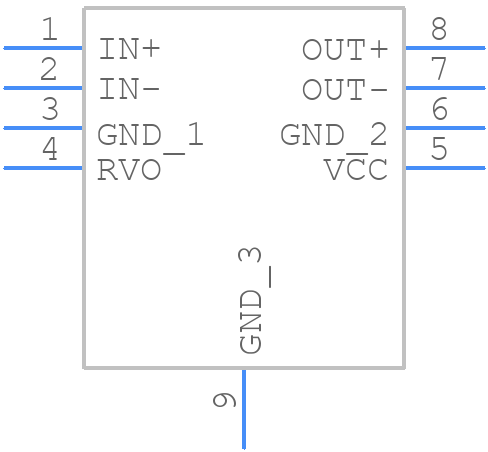

DS15BA101SDE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS15BA101SDE/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGQ0008A
click to zoom
3D Models
DS15BA101SDE/NOPB - Texas Instruments - 3D model - Small Outline No-lead - NGQ0008A
click to zoom

DS15BA101SDE/NOPB Details

  • Manufacturer Part Number:

    DS15BA101SDE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    BUFFER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    49 mA

  • Supply Voltage Limit-Max:

    3.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS15BA101SDE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal gradients. Use a thermal interface material to improve heat transfer between the device and the heatsink.
  • Not using the recommended input capacitance may result in reduced noise immunity, increased jitter, and decreased signal integrity. It may also affect the device's ability to meet the specified rise and fall times.
  • While the device can operate with input voltages between 2.5V and 3.6V, the recommended operating voltage is 3.3V. Operating at a different voltage may affect the device's performance, power consumption, and reliability.
  • Use an oscilloscope to measure the signal waveform and jitter. Check the PCB layout, signal routing, and termination. Verify that the input signal meets the recommended specifications. Consult the datasheet and application notes for guidance on signal integrity and jitter reduction.
