DS1812-10+T&R - Analog Devices

Description: Supervisory Circuits 5V EconoReset with Active High Push-Pull Output

Download DS1812-10+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DS1812-10+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints

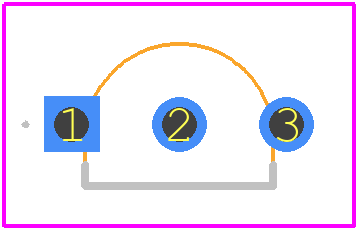

DS1812-10+T&R - Analog Devices PCB footprint - Other - Other - Q3+1_2024-1
click to zoom
3D Models
DS1812-10+T&R - Analog Devices - 3D model - Other - Q3+1_2024-1
click to zoom

DS1812-10+T&R Details

  • Manufacturer Part Number:

    DS1812-10+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    3-TO92-N/A

  • Package Description:

    TO-92, SIP3,.1,50

  • Pin Count:

    3

  • Manufacturer Package Code:

    3-TO92-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    O-PBCY-T3

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TO-92

  • Package Equivalence Code:

    SIP3,.1,50

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +4.35V
