DS1816R-5+T&R - Analog Devices

Description: Supervisor Open Drain or Open Collector 1 Channel SOT-23-3

Download DS1816R-5+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

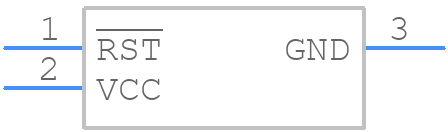

Symbol
DS1816R-5+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS1816R-5+T&R - Analog Devices PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - 3 SOT23
click to zoom
3D Models
DS1816R-5+T&R - Analog Devices - 3D model - SOT23 (3-Pin) - 3 SOT23
click to zoom

DS1816R-5+T&R Details

  • Manufacturer Part Number:

    DS1816R-5+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    3-SOT_23-N/A

  • Package Description:

    TSSOP, TO-236

  • Pin Count:

    3

  • Manufacturer Package Code:

    3-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-11-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.12 mm

  • Supply Current-Max (Isup):

    0.035 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.06V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.3 mm

DS1816R-5+T&R Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS1816R-5+T&R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-precision voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the thermal sensing element should be thermally connected to the device being measured.
  • The maximum allowed voltage on the digital input pins of the DS1816R-5+T&R is 5.5V, which is the maximum rating for the device's digital inputs. Exceeding this voltage can cause damage to the device.
  • The DS1816R-5+T&R is a surface-mount device, and its reliability in high-vibration environments depends on the quality of the PCB assembly and the mounting method. It's recommended to follow proper PCB assembly and mounting techniques to ensure the device's reliability in such environments.
  • To troubleshoot issues with the DS1816R-5+T&R, start by verifying the power supply voltage, checking the PCB layout and assembly, and ensuring proper communication protocol implementation. Use a logic analyzer or oscilloscope to debug the digital communication and verify the device's output. Consult the datasheet and application notes for specific troubleshooting guidelines.
