DS1859B-020+ footprint, schematic symbol and 3D model by Analog Devices

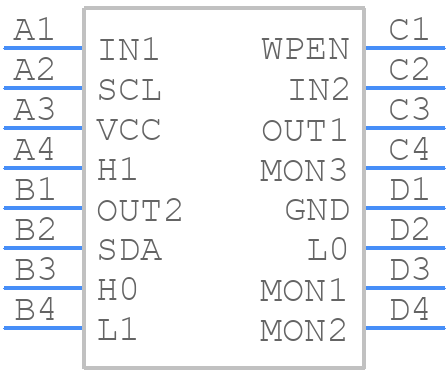

Symbol

click to zoom

PCB Footprints

DS1859B-020+ - Analog Devices PCB footprint - BGA - BGA - X16+1-1

click to zoom

3D Models

DS1859B-020+ - Analog Devices - 3D model - BGA - X16+1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DS1859B-020+
Part Number DS1859B-020+
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - X16+1-1
Released Date Jan 2, 2021
Last Modified Date Jul 2, 2025 1:57 PM UTC
Pinout / Pin List Click Here (Member Only)

DS1859B-020+ Details

Manufacturer Part Number:
DS1859B-020+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
16-CSP_BGA-4X4X1
Package Description:
4 X 4 MM, 1 MM PITCH, ROHS COMPLIANT, CSBGA-16
Pin Count:
16
Manufacturer Package Code:
16-CSP_BGA-4X4X1
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
2003-11-10
Manufacturer:
Analog Devices Inc
YTEOL:
3
Additional Feature:
NONVOLATILE MEMORY; OTHER RESISTOR VALUE IS 20000 OHM; IT CAN ALSO OPERATE FROM A 5V SUPPLY
Control Interface:
2-WIRE SERIAL
Converter Type:
DIGITAL POTENTIOMETER
JESD-30 Code:
S-PBGA-B16
JESD-609 Code:
e1
Length:
4 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Positions:
256
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LBGA
Package Equivalence Code:
BGA16,4X4,40
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Resistance Law:
LINEAR
Resistor Terminal Voltage-Max:
3.6 V
Resistor Terminal Voltage-Min:
-0.3 V
Seated Height-Max:
1.5 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Temperature Coefficient-Nom:
50 ppm/°C
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Total Resistance-Nom:
20000 Ω
Width:
4 mm

DS1859B-020+ Frequently Asked Questions (FAQs)

A good PCB layout for the DS1859B-020+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VCC pin and to keep the input traces as short as possible.
To ensure accuracy over the entire operating temperature range, it's essential to follow proper calibration procedures, use a high-quality voltage reference, and minimize thermal gradients on the PCB. Additionally, consider using a temperature sensor to monitor the device temperature and compensate for any temperature-related errors.
The maximum allowed capacitive load on the output of the DS1859B-020+ is typically around 100pF to 200pF. Exceeding this limit can cause stability issues and affect the device's performance. It's recommended to use a buffer amplifier or an op-amp with a low output impedance to drive capacitive loads.
Yes, the DS1859B-020+ can be used in a multi-channel application. To ensure channel-to-channel isolation, use separate analog and digital grounds for each channel, and consider using a separate voltage reference for each channel. Additionally, use shielding and guard rings to minimize crosstalk and noise coupling between channels.
The recommended power-up sequence for the DS1859B-020+ is to power up the VCC pin first, followed by the digital supply voltage (VDD). This ensures that the internal voltage regulators are properly enabled and prevents latch-up or other issues. It's also recommended to use a power-up reset circuit to ensure a clean power-up sequence.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DS1859B-020+ Overview

Use the download button to access the DS1859B-020+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DS185, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
