DS2003CM - Texas Instruments

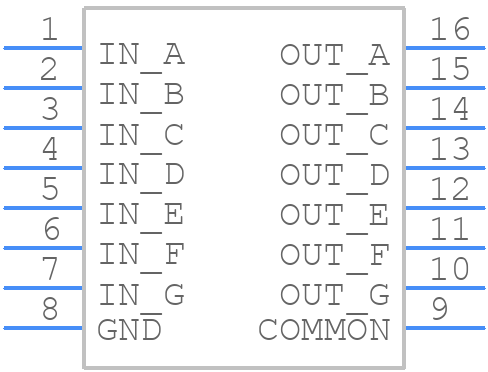

DS2003CM Details

• Manufacturer Part Number:

  DS2003CM

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  LOGIC LEVEL COMPATIBLE

• Collector Current-Max (IC):

  0.5 A

• Collector-Emitter Voltage-Max:

  55 V

• Configuration:

  COMPLEX

• JEDEC-95 Code:

  MS-012AC

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e0

• Moisture Sensitivity Level:

  1

• Number of Elements:

  7

• Number of Terminals:

  16

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  235

• Polarity/Channel Type:

  NPN

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Turn-off Time-Max (toff):

  1000 ns

• Turn-on Time-Max (ton):

  1000 ns
