DS28E38Q+T - Analog Devices

Description: DeepCover® Secure ECDSA Authenticator with ChipDNA PUF Protection

Download DS28E38Q+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

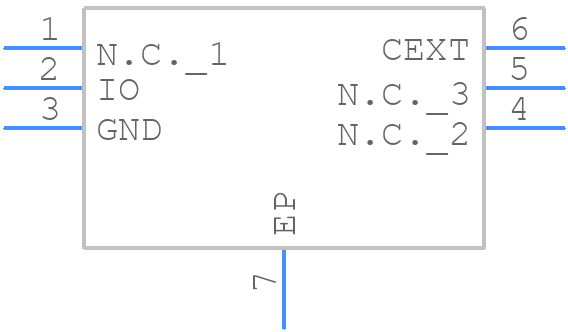

DS28E38Q+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS28E38Q+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
DS28E38Q+T - Analog Devices - 3D model - Small Outline No-lead - T633+2
click to zoom

DS28E38Q+T Details

  • Manufacturer Part Number:

    DS28E38Q+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2017-11-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,37

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

DS28E38Q+T Frequently Asked Questions (FAQs)

  • The DS28E38Q+T can support up to 256 devices on a single 1-Wire bus, but the actual number of devices that can be connected depends on the specific application and the bus capacitance.
  • The DS28E38Q+T has a built-in voltage regulator that can operate down to 2.5V, and it can also tolerate voltage drops or brownouts on the 1-Wire bus. However, the device may reset or enter a low-power state if the voltage drop is severe or prolonged.
  • Yes, the DS28E38Q+T has a high-accuracy bandgap voltage reference and a precision temperature sensor, making it suitable for applications that require high accuracy and stability, such as industrial automation, medical devices, and aerospace.
  • The DS28E38Q+T has built-in EMI and RFI protection, including a 1-Wire bus filter and a shielded package, to minimize the effects of electromagnetic interference and radio-frequency interference.
  • Yes, the DS28E38Q+T is designed to operate in harsh environments, with a temperature range of -40°C to +85°C and humidity tolerance up to 85% RH. However, the device may require additional protection or shielding in extreme environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS28E38Q+T Overview

Use the download button to access the DS28E38Q+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS28E, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
