DS28E83Q+T - Analog Devices

Description: High Radiation Resistance Allows UserProgrammable Manufacturing or Calibration Data Before Medical Sterilization • Resistant up to 75kGy (kiloGray) of Radiation • One-Time-Programmable (OTP) 10kb of User Data, Keys, and Certificates ● ECC P-256 Compute Engine • FIPS 186 ECDSA P-256 Signature and Verification • ECDH Key Exchange for Session Key Establishment • ECDSA Authenticated R/W of Configurable Memory ● SHA-256 Compute Engine • FIPS 180 MAC for Secure Download/Boot • FIPS 198 HMAC for Bidire

Download DS28E83Q+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

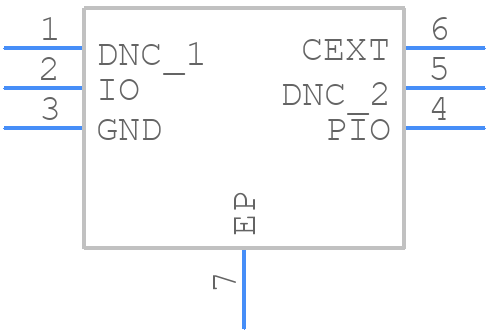

DS28E83Q+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS28E83Q+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6 TDFN-EP (2.5k pcs reel)
click to zoom
3D Models
DS28E83Q+T - Analog Devices - 3D model - Small Outline No-lead - 6 TDFN-EP (2.5k pcs reel)
click to zoom

DS28E83Q+T Details

  • Manufacturer Part Number:

    DS28E83Q+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2018-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    50 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

DS28E83Q+T Frequently Asked Questions (FAQs)

  • The maximum number of devices that can be connected to a single 1-Wire bus is 256, as the 1-Wire protocol uses an 8-bit device address.
  • The DS28E83Q+T has an internal voltage regulator that can operate from a supply voltage range of 2.97V to 5.5V, and it also has built-in noise filtering to minimize the effects of power supply noise and voltage drops.
  • Yes, the DS28E83Q+T has a high accuracy temperature sensor with a typical accuracy of ±0.5°C over the range of -20°C to +100°C, making it suitable for applications that require high accuracy temperature measurement.
  • The DS28E83Q+T has a built-in brownout detector that resets the device in the event of a power failure, and it also has a non-volatile memory that retains its contents even during power cycles or brownouts, ensuring that data is not corrupted.
  • Yes, the DS28E83Q+T has a high reliability design and is capable of retaining data for up to 50 years at 25°C, making it suitable for applications that require high reliability and long-term data retention.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS28E83Q+T Overview

Use the download button to access the DS28E83Q+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS28E, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
