DS30EA101SQE/NOPB - Texas Instruments

Description: 0.15- to 3.125-Gbps adaptive cable equalizer

Download DS30EA101SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

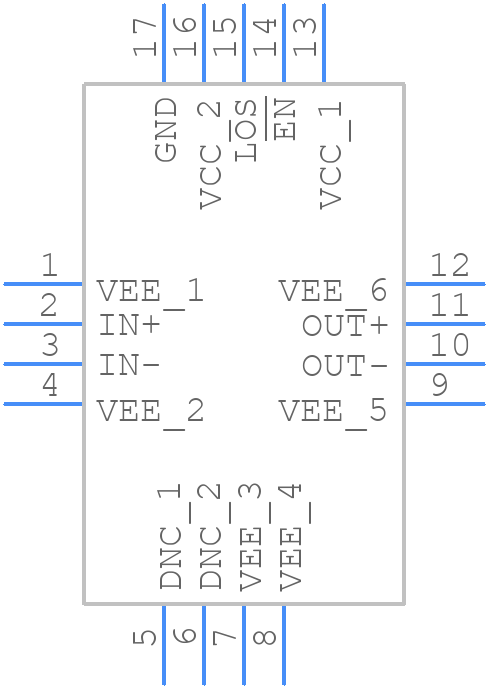

DS30EA101SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS30EA101SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUM0016A
click to zoom
3D Models
DS30EA101SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RUM0016A
click to zoom

DS30EA101SQE/NOPB Details

  • Manufacturer Part Number:

    DS30EA101SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.065 mA

  • Supply Voltage-Nom:

    3.1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS30EA101SQE/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device. Reduce the power consumption or use a lower power version of the device if possible.
  • Use level shifters or voltage translators to ensure signal integrity between domains. Ensure that the device is powered from a stable voltage source and that the voltage rails are properly sequenced.
  • Use an oscilloscope to check signal integrity and voltage levels. Verify that the device is properly powered and that the input signals are within the specified range. Check for noise or EMI issues.
  • Use controlled impedance traces and terminations to minimize signal reflections. Use a signal integrity analysis tool to simulate and optimize the signal path.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS30EA101SQE/NOPB Overview

Use the download button to access the DS30EA101SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS30E, or try a keyword search, such as Analog Transmission Interfaces
