Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a differential signal pair for the clock and data lines, keep the signal traces short and matched, and use a common mode filter or common mode choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS30EA101SQX/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends keeping the cable length below 10 meters for optimal performance.
To troubleshoot issues with the DS30EA101SQX/NOPB, use a logic analyzer or oscilloscope to verify the signal integrity and timing, check the power supply and voltage levels, and consult the datasheet and application notes for guidance on specific issues.
The DS30EA101SQX/NOPB is designed to be compatible with other Texas Instruments devices, such as the TIA-102 and TIA-104, but it's always recommended to verify compatibility and check the specific device datasheets for any specific requirements or restrictions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS30EA101SQX/NOPB Overview

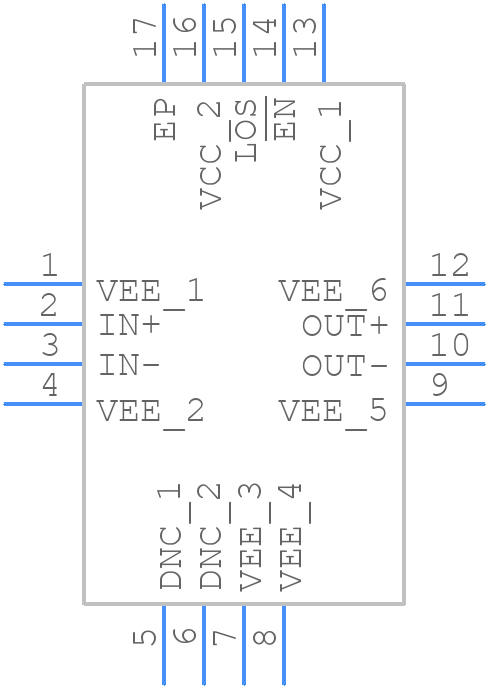

Use the download button to access the DS30EA101SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS30E,
or try a keyword search, such as Analog Transmission Interfaces
