DS3668N - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Obsolete, LTB expires Nov 6, 2018

Download DS3668N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

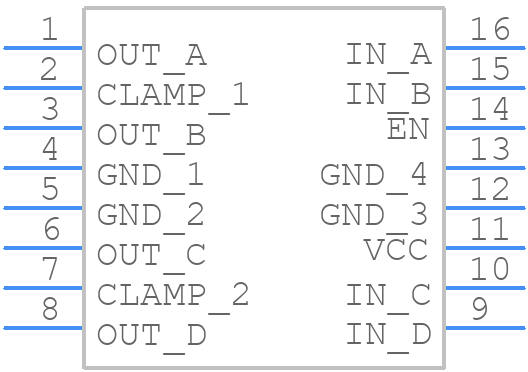

Symbol
DS3668N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS3668N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N16E
click to zoom
3D Models
DS3668N - Texas Instruments - 3D model - Dual-In-Line Packages - N16E
click to zoom

DS3668N Details

  • Manufacturer Part Number:

    DS3668N

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Driver Number of Bits:

    4

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.305 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.6 A

  • Output Peak Current Limit-Nom:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    10 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

DS3668N Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the DS3668N application note (SLVAE66). It's essential to follow this guide to ensure proper operation and minimize noise and EMI issues.
  • The DS3668N can be configured for a specific clock frequency using the CLK_SEL pins. The configuration depends on the desired clock frequency and the input clock source. Refer to the datasheet (Table 7) for the correct configuration.
  • The maximum input clock frequency that the DS3668N can handle is 200 MHz. However, the device can also be used with higher input frequencies by using an external clock divider or a phase-locked loop (PLL).
  • Yes, the DS3668N can be used with a crystal oscillator. The device has an integrated crystal oscillator circuit that can be used to generate a clock signal from a crystal resonator. Refer to the datasheet (Section 8.3.1) for more information.
  • To troubleshoot issues with the DS3668N, start by checking the power supply voltage, clock input, and output signals. Use an oscilloscope to verify the clock signal quality and frequency. Also, check the device's configuration and ensure that it is set correctly. If the issue persists, refer to the datasheet and application notes for more troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS3668N Overview

Use the download button to access the DS3668N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS366, or try a keyword search, such as Peripheral Drivers
