Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the decoupling capacitors are placed close to the device.
To optimize performance in high-frequency applications, ensure the PCB layout is optimized for high-frequency signals, use a low-ESR decoupling capacitor, and consider using a ferrite bead or a pi-filter to reduce noise. Additionally, ensure the device is properly terminated, and the signal traces are kept short and matched.
The DS3680DE4 is rated for operation from -40°C to 85°C. However, it's essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, to ensure reliable operation within the specified temperature range.
The POR and BOR features are designed to ensure the device resets properly during power-up and brown-out conditions. To handle these features, ensure the power supply is stable and within the recommended voltage range, and consider using an external reset circuit or a supervisory IC to monitor the power supply and generate a reset signal if necessary.
To minimize EMI and RFI, ensure the PCB layout is designed to reduce radiation, use shielding or a metal enclosure, and consider using EMI filters or common-mode chokes. Additionally, follow good design practices, such as keeping signal traces short and away from the edge of the board, and using a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS3680DE4 Overview

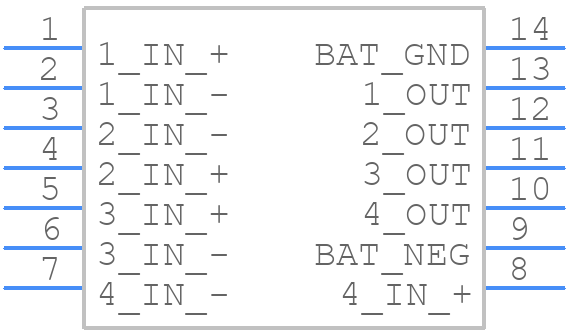

Use the download button to access the DS3680DE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS368,
or try a keyword search, such as Peripheral Drivers
