Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and identify potential issues. Also, follow best practices for high-speed signal routing, such as using differential pairs, and consider using signal conditioning components like terminators or filters.
The maximum operating temperature range for the DS40MB200SQ/NOPB is -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability.
Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms, and check for common issues like signal attenuation, reflections, or crosstalk. Also, verify that the device is properly powered and configured, and check for any firmware or software issues.
The DS40MB200SQ/NOPB is not specifically designed for radiation-hardened or high-reliability applications, but Texas Instruments does offer radiation-hardened and high-reliability versions of similar devices. Contact Texas Instruments for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS40MB200SQ/NOPB Overview

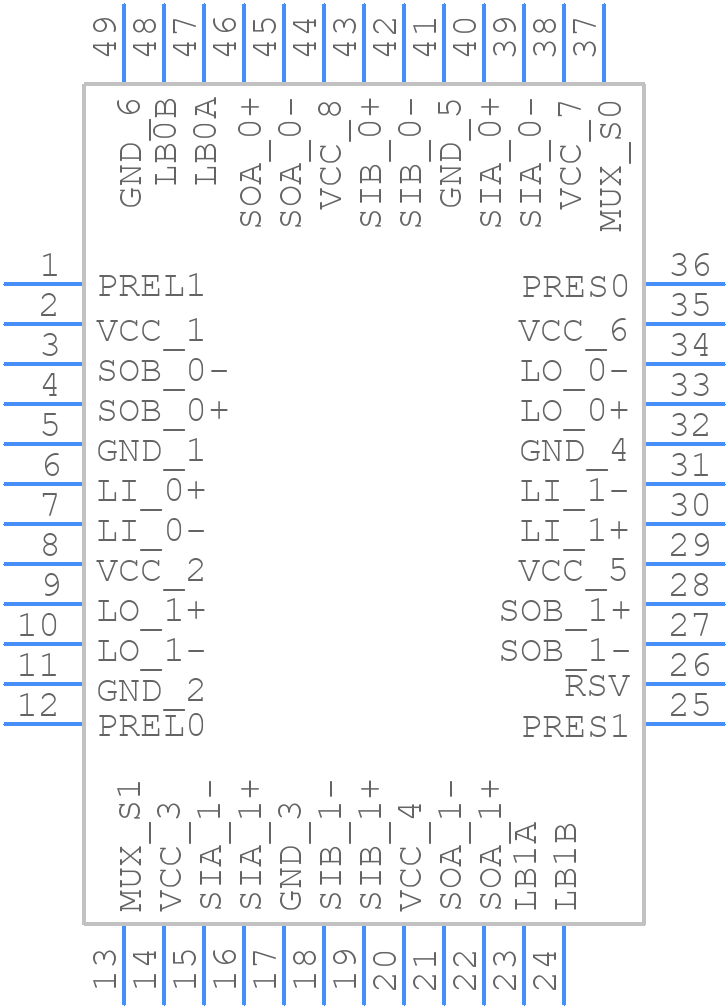

Use the download button to access the DS40MB200SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS40M,
or try a keyword search, such as Multiplexer/Demultiplexers
