DS4424N+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - DS4424N+ - Digital to Analogue Converter, Programmable Sink/Source Current, 7 bit, I2C, 2.7V to 5.5V, TDFN

Download DS4424N+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

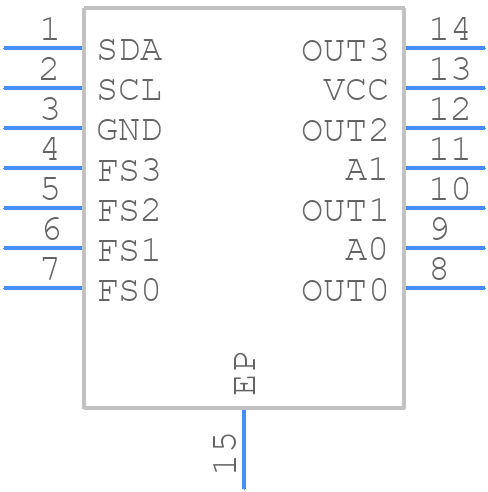

DS4424N+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS4424N+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+2
click to zoom
3D Models
DS4424N+ - Analog Devices - 3D model - Small Outline No-lead - T1433+2
click to zoom

DS4424N+ Details

  • Manufacturer Part Number:

    DS4424N+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2008-03-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.75 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.7812%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS4424N+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the DS4424N+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling and to place it as close as possible to the device.
  • The DS4424N+ requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean and stable power source, and to ensure that the power supply is fully settled before applying any input signals. The power sequencing requirements are not critical, but it's recommended to power the device after the power supply has reached its nominal value.
  • The DS4424N+ has an operating temperature range of -40°C to +125°C. The device's performance may be affected by temperature, with the output voltage accuracy and stability decreasing at higher temperatures. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • The DS4424N+ can be programmed using a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C). The device can be programmed using a microcontroller or a dedicated programming device. The programming interface is selected using the MODE pin, and the device can be programmed using a variety of programming languages and software tools.
  • The DS4424N+ has built-in ESD protection diodes on all pins, which can withstand up to 2kV of ESD voltage. Additionally, the device has latch-up prevention circuitry to prevent damage from overvoltage conditions. However, it's still recommended to follow proper ESD handling and prevention procedures when handling the device.
