DS600U+ - Analog Devices

Description: DS600U+, Temperature Sensor ±0.75°C 2.7 → 5.5 V 8-Pin µSOP

Download DS600U+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

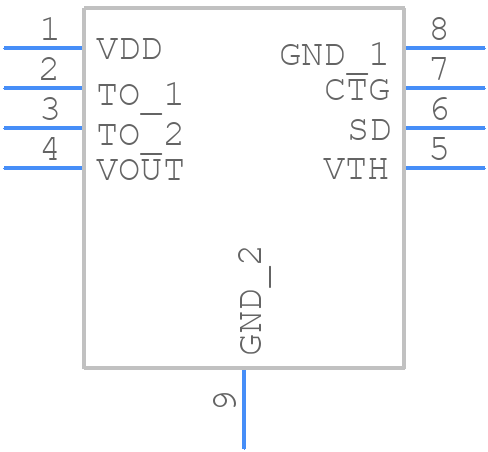

DS600U+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS600U+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-uSOP-EP
click to zoom
3D Models
DS600U+ - Analog Devices - 3D model - Small Outline Packages - 8-uSOP-EP
click to zoom

DS600U+ Details

  • Manufacturer Part Number:

    DS600U+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO_EP-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2004-04-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    0.75 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.02 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Linearity (Cel):

    0.2 Cel

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.14 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    0.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

DS600U+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in high-frequency applications, ensure that the input signal is properly terminated, use a low-impedance power supply, and minimize the length of the input traces. Additionally, consider using a shielded enclosure to reduce electromagnetic interference.
  • The maximum input voltage that the DS600U+ can handle is ±10V. Exceeding this voltage may damage the device.
  • Calibration involves adjusting the offset and gain of the device. Refer to the datasheet for the recommended calibration procedure, which involves applying a known input signal and adjusting the offset and gain trimmers accordingly.
  • The typical settling time of the DS600U+ is around 10-15 microseconds, depending on the input signal frequency and amplitude.
