DS620U+ - Analog Devices

Description: Maxim DS620U+ Temperature Sensor 8-Pin μMAX, -55 → +125 °C

Download DS620U+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

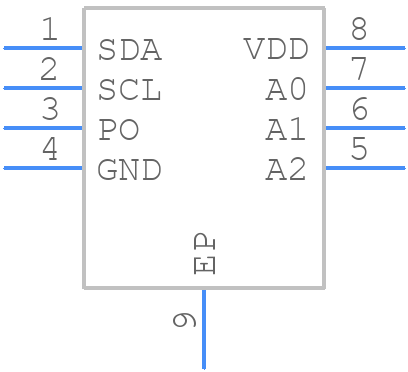

DS620U+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS620U+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - DS620U+
click to zoom
3D Models
DS620U+ - Analog Devices - 3D model - Small Outline Packages - DS620U+
click to zoom

DS620U+ Details

  • Manufacturer Part Number:

    DS620U+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO_EP-N/A

  • Package Description:

    MICRO, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2004-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS620U+ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. This ensures proper device operation and prevents latch-up.
  • To ensure accurate voltage measurement, it's essential to use a low-impedance voltage source, minimize noise and interference, and use a high-quality voltage reference. Additionally, calibrate the device according to the datasheet recommendations.
  • The maximum input voltage that the DS620U+ can handle is 12V, but it's recommended to operate within the specified input voltage range (0V to 10V) for optimal performance and accuracy.
  • The DS620U+ is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, to ensure reliable operation in high-temperature environments.
  • The DS620U+ can be interfaced with a microcontroller or FPGA using a standard SPI or I2C interface. Ensure that the interface voltage levels are compatible, and use a level shifter if necessary. Also, follow the datasheet recommendations for clock frequency, data transfer, and synchronization.
