DS620U+T&R - Analog Devices

Description: Board Mount Temperature Sensors Low-Voltage, 0.5 C Accuracy Digital Thermometer and Thermostat

Download DS620U+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

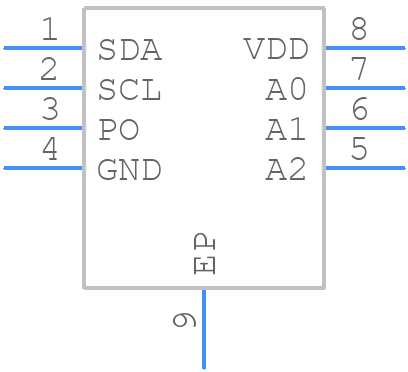

DS620U+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS620U+T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 usop
click to zoom
3D Models
DS620U+T&R - Analog Devices - 3D model - Small Outline Packages - 8 usop
click to zoom

DS620U+T&R Details

  • Manufacturer Part Number:

    DS620U+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO_EP-N/A

  • Package Description:

    MICRO, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO_EP-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2004-08-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DS620U+T&R Frequently Asked Questions (FAQs)

  • A good PCB layout for the DS620U+T&R involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. It's also recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be mounted in a way that minimizes thermal coupling to the surrounding environment.
  • The maximum allowed voltage on the input pins of the DS620U+T&R is 5.5V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to VCC + 0.3V to prevent damage to the device.
  • Yes, the DS620U+T&R can be used in a ratiometric configuration, where the output voltage is proportional to the ratio of the input voltage to the reference voltage. This configuration can provide better accuracy and temperature stability.
  • The output voltage range of the DS620U+T&R is 0V to VCC. To handle this range, it's recommended to use a voltage buffer or an op-amp with a rail-to-rail output stage to ensure that the output voltage can swing close to the supply rails.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS620U+T&R Overview

Use the download button to access the DS620U+T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS620, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
