DS72060W200FPV - Renesas Electronics

DS72060W200FPV Details

• Manufacturer Part Number:

  DS72060W200FPV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LQFP

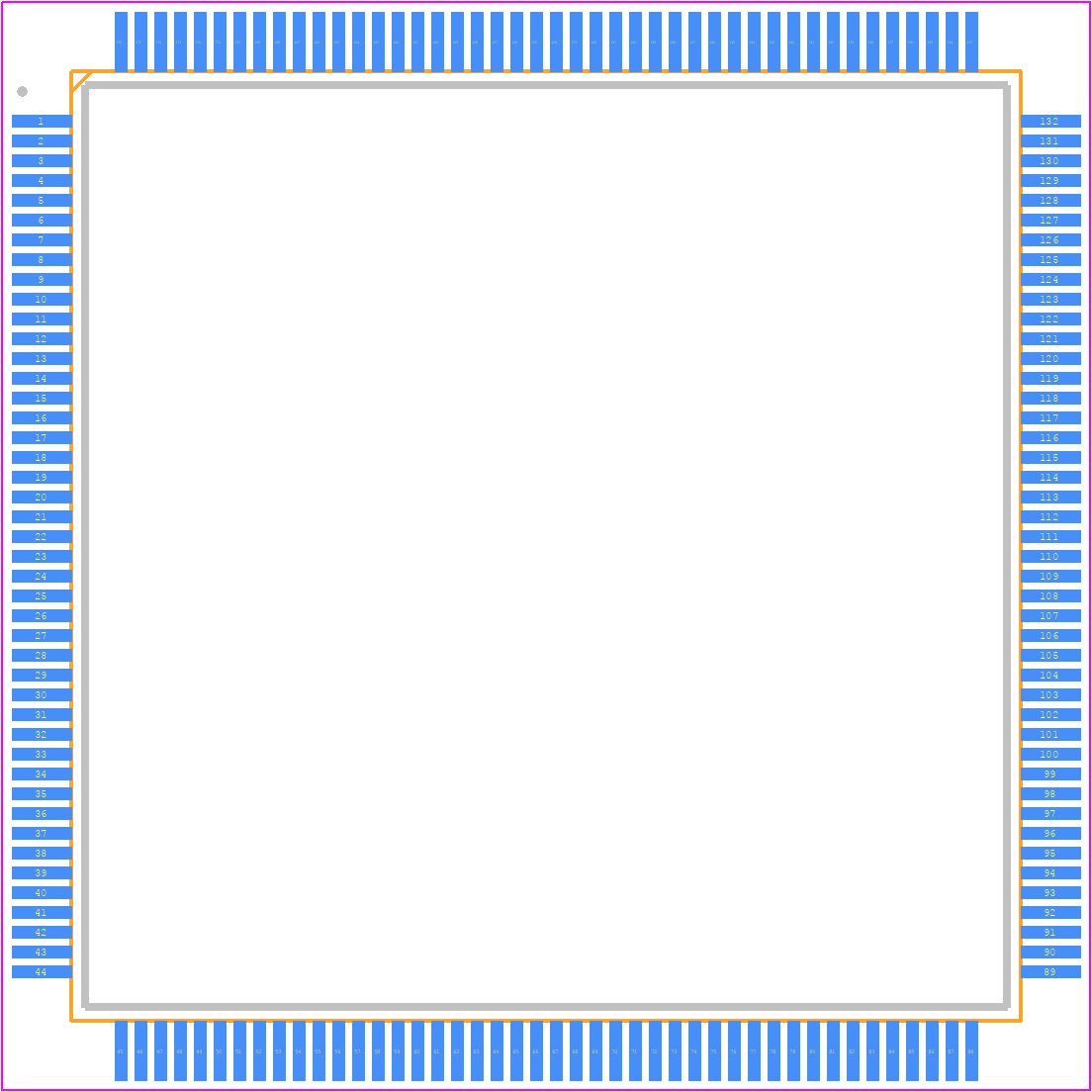

• Package Description:

  24 X 24 MM, 1.70 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, PLASTIC, LFQFP-176

• Pin Count:

  176

• Manufacturer Package Code:

  PLQP0176KD

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES MINI SUPPLY 4V AT 16 MHZ

• Address Bus Width:

  26

• Bit Size:

  32

• Clock Frequency-Max:

  66.67 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G176

• Length:

  24 mm

• Number of I/O Lines:

  78

• Number of Terminals:

  176

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.7 mm

• Speed:

  200 MHz

• Supply Voltage-Max:

  1.35 V

• Supply Voltage-Min:

  1.15 V

• Supply Voltage-Nom:

  1.25 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
