DS75LVU+T&R - Analog Devices

Description: Board Mount Temperature Sensors Low-Voltage Digital Temperature Sensor

Download DS75LVU+T&R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

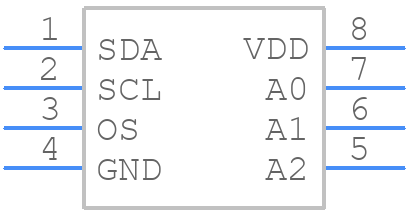

Symbol
DS75LVU+T&R - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DS75LVU+T&R - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+12-1
click to zoom
3D Models
DS75LVU+T&R - Analog Devices - 3D model - Small Outline Packages - U8+12-1
click to zoom

DS75LVU+T&R Details

  • Manufacturer Part Number:

    DS75LVU+T&R

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    USOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2006-05-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.85 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    SQUARE

  • Packing Method:

    TR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT

  • Supply Voltage-Max:

    3.7 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

DS75LVU+T&R Frequently Asked Questions (FAQs)

  • The typical power-up time for the DS75LVU is around 10ms to 15ms, but this can vary depending on the specific application and operating conditions.
  • The DS75LVU has an accuracy of ±2°C from -25°C to +100°C, and ±3°C from -40°C to +125°C. However, this accuracy can be affected by various factors such as thermal gradients, self-heating, and calibration errors.
  • Yes, the DS75LVU is designed to operate in harsh environments and can withstand high vibrations and shocks. However, it's essential to follow proper mounting and packaging guidelines to ensure reliable operation.
  • The DS75LVU has a built-in thermal gradient compensation circuit that helps to minimize errors caused by thermal gradients. Additionally, the device has a low self-heating characteristic, which reduces the impact of self-heating on temperature measurements.
  • While the DS75LVU is specified to operate up to 125°C, it's possible to use it in high-temperature applications above 125°C with some limitations. However, the accuracy and reliability of the device may be compromised, and additional calibration may be required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS75LVU+T&R Overview

Use the download button to access the DS75LVU+T&R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS75L, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
