DS76191W125BGV - Renesas Electronics

Description: The SH7619 Group is supported only for customers who have already adopted these products. The RX Family or RZ Family are recommended for new designs.

Download DS76191W125BGV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DS76191W125BGV - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

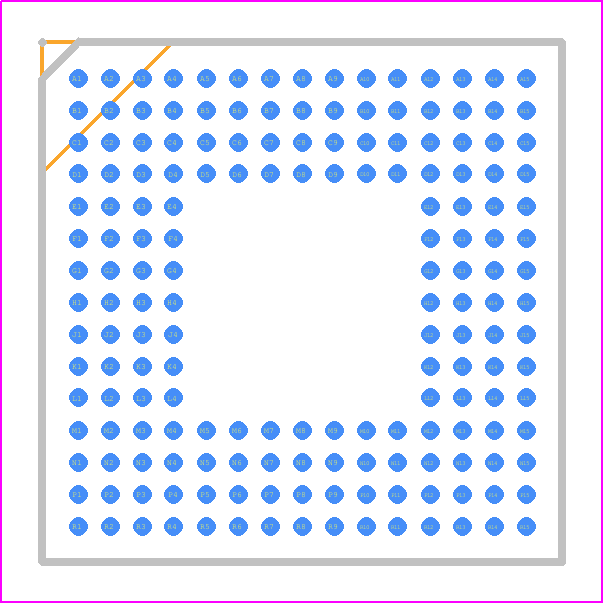

DS76191W125BGV - Renesas Electronics PCB footprint - BGA - BGA - LFBGA-176
click to zoom
3D Models
DS76191W125BGV - Renesas Electronics - 3D model - BGA - LFBGA-176
click to zoom

DS76191W125BGV Details

  • Manufacturer Part Number:

    DS76191W125BGV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    LFBGA

  • Package Description:

    LFBGA-176

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLBG0176GA

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    NO

  • Additional Feature:

    16 KILOBYTES OF U MEMORY, 2 KILOBYTES OF BUFFER RAM

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SUPERH

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B176

  • Length:

    13 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    9

  • Number of I/O Lines:

    78

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    176

  • Number of Timers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA176,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • ROM (words):

    0

  • Seated Height-Max:

    1.4 mm

  • Speed:

    125 MHz

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

DS76191W125BGV Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • Renesas provides guidelines for fault detection and protection mechanisms in their application notes and datasheet. Implementing features like overcurrent protection, overvoltage protection, and thermal shutdown can help prevent damage to the device and ensure reliable operation.
  • The recommended settings for the internal oscillator and clock configuration can be found in the datasheet and application notes. It's essential to follow these guidelines to ensure stable and accurate clock operation.
  • Optimizing power consumption and reducing power dissipation can be achieved by following Renesas' guidelines for power management, using low-power modes, and optimizing the system design. Additionally, using power-saving features like dynamic voltage and frequency scaling can help reduce power consumption.
  • Renesas provides compatibility and interoperability information in their datasheets, application notes, and design guides. It's essential to review this information to ensure seamless integration with other Renesas devices or third-party components.
