Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
To ensure signal integrity, use a well-designed PCB with controlled impedance, minimize signal reflections, and use termination resistors as recommended in the datasheet. Additionally, use a signal integrity analysis tool to simulate and optimize the design.
The maximum cable length supported by the DS90CP22M-8/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 10 meters for FPD-Link III applications.
To troubleshoot issues with the DS90CP22M-8/NOPB, use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check the power supply voltage, clock frequency, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines and common issues.
While the DS90CP22M-8/NOPB is optimized for FPD-Link III applications, it can be used in other high-speed serial link applications with proper design and testing. However, it's essential to consult with Texas Instruments and ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CP22M-8/NOPB Overview

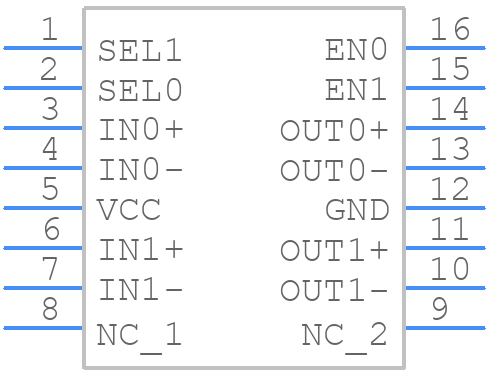

Use the download button to access the DS90CP22M-8/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Multiplexers or Switches
