DS90CP22MX-8/NOPB - Texas Instruments

Description: 800 Mbps 2x2 LVDS Crosspoint Switch

Download DS90CP22MX-8/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

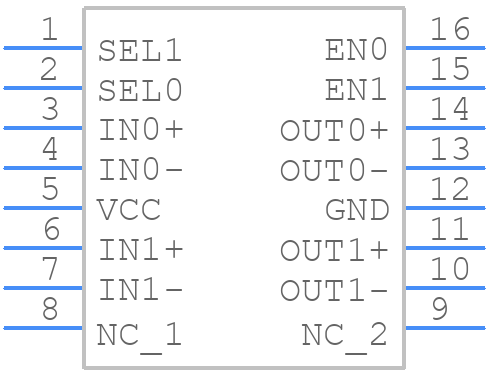

DS90CP22MX-8/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS90CP22MX-8/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
DS90CP22MX-8/NOPB - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

DS90CP22MX-8/NOPB Details

  • Manufacturer Part Number:

    DS90CP22MX-8/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.58 mm

  • Supply Current-Max (Isup):

    125 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

DS90CP22MX-8/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DS90CP22MX-8/NOPB evaluation module documentation, which includes guidelines for component placement, routing, and thermal management.
  • To ensure signal integrity, it is recommended to follow the guidelines in the datasheet for transmission line impedance, signal routing, and termination. Additionally, using a signal integrity analysis tool can help identify potential issues.
  • The maximum cable length supported by the DS90CP22MX-8/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the datasheet recommends a maximum cable length of 10 meters for FPD-Link III applications.
  • The DS90CP22MX-8/NOPB can be configured using the I2C interface or through the use of external resistors. The datasheet provides detailed information on the configuration options and settings for different applications.
  • The power consumption of the DS90CP22MX-8/NOPB depends on the specific application and the operating conditions. The datasheet provides typical power consumption values for different operating modes and frequencies.
