Texas Instruments provides a recommended PCB layout in the DS90LV110ATMTX/NOPB evaluation module documentation, which includes guidelines for signal routing, power supply decoupling, and thermal management.
To ensure reliable operation, follow the recommended operating conditions, including power supply voltage, temperature, and signal integrity guidelines. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a stable junction temperature.
The built-in termination resistors are designed for specific impedance values and may not be suitable for all applications. External termination resistors may be required for custom impedance values or to meet specific signal integrity requirements.
Use an oscilloscope to verify the clock signal's frequency, amplitude, and jitter. Check the clock signal's routing and termination to ensure it meets the recommended guidelines. If issues persist, consult the device's datasheet and application notes for troubleshooting guidance.
Yes, the DS90LV110ATMTX/NOPB is a general-purpose serializer/deserializer and can be used in various applications, including industrial, medical, and consumer electronics. However, ensure that the device meets the specific requirements of your application, including operating conditions, signal integrity, and regulatory compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV110ATMTX/NOPB Overview

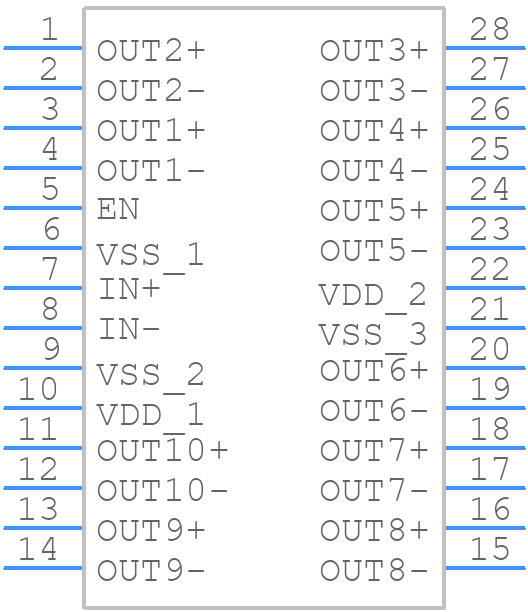

Use the download button to access the DS90LV110ATMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Clock Drivers
