DSC1123CI2-200.0000 - Microchip

Description: Oscillator MEMS 200MHz ±25ppm (Stability) 15pF LVDS 52% 2.5V/3.3V 6-Pin VDFN SMD Tube

Download DSC1123CI2-200.0000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

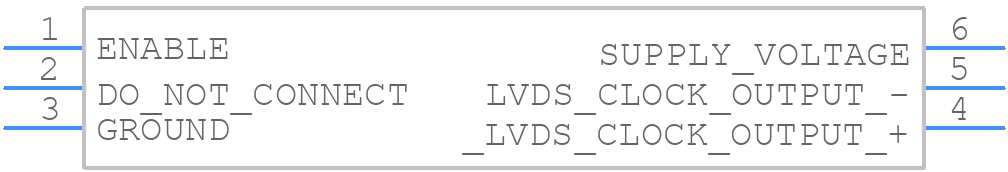

Symbol
DSC1123CI2-200.0000 - Microchip - PCB symbol
click to zoom
PCB Footprints
DSC1123CI2-200.0000 - Microchip PCB footprint - Other - Other - DSC1123CI2-200.0000-2
click to zoom
3D Models
DSC1123CI2-200.0000 - Microchip - 3D model - Other - DSC1123CI2-200.0000-2
click to zoom

DSC1123CI2-200.0000 Details

  • Manufacturer Part Number:

    DSC1123CI2-200.0000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMALL, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    VDFN-6

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TUBE

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

DSC1123CI2-200.0000 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the datasheet, but for optimal performance, it's essential to follow the layout guidelines, including using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
  • Calibration involves adjusting the internal clock and voltage references. Refer to the datasheet for calibration procedures, and consider using Microchip's calibration software tools or consulting with a Microchip FAE for guidance.
  • The DSC1123CI2-200.0000 has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and following PCB thermal design guidelines.
  • Use Microchip's debugging tools, such as the MPLAB X IDE, to analyze the device's behavior. Consult the datasheet and application notes for troubleshooting guidelines, and consider seeking support from Microchip's technical support team.
  • Yes, follow proper EMI/EMC design practices, such as using shielding, filtering, and grounding techniques. Consult the datasheet and relevant industry standards (e.g., CISPR) for guidance.
