DSC2033FI2-F0044 - Microchip

Description: MEMS OSC AUTO LOWPWR -40C-85C

Download DSC2033FI2-F0044 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

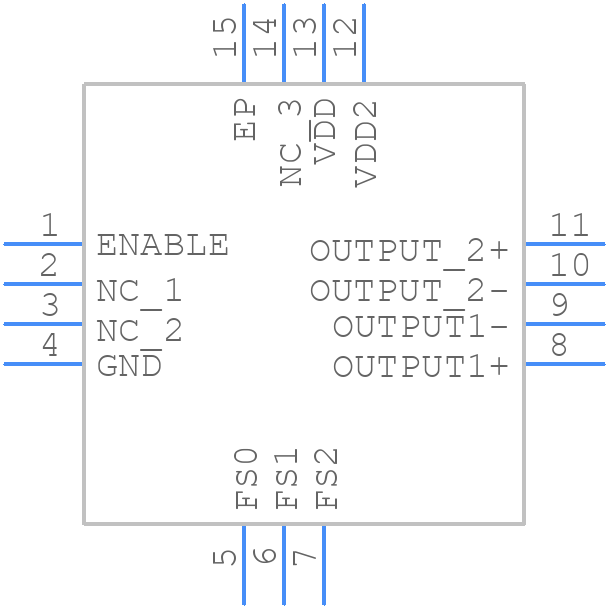

DSC2033FI2-F0044 - Microchip - PCB symbol
click to zoom
PCB Footprints
DSC2033FI2-F0044 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DSC2033FI2-F0044
click to zoom
3D Models
DSC2033FI2-F0044 - Microchip - 3D model - Quad Flat No-Lead - DSC2033FI2-F0044
click to zoom

DSC2033FI2-F0044 Details

  • Manufacturer Part Number:

    DSC2033FI2-F0044

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 14 PIN

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    5

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT; TUBE

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Max:

    460 MHz

  • Operating Frequency-Min:

    2.3 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

DSC2033FI2-F0044 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
  • The device's configuration depends on the specific application. Refer to the datasheet and application notes for guidance on setting the clock frequency, voltage regulator, and other parameters. You may also need to consult with Microchip's technical support or a qualified engineer.
  • The DSC2033FI2-F0044 has an operating temperature range of -40°C to +125°C. However, the device's performance and accuracy may degrade at extreme temperatures. Ensure that your design takes into account the thermal management and cooling requirements.
  • The DSC2033FI2-F0044 is a surface-mount device and can be susceptible to vibration-induced failures. You may need to take additional measures, such as using a vibration-resistant mounting method, to ensure the device's reliability in high-vibration environments.
  • Start by consulting the datasheet and application notes for troubleshooting guidelines. You can also use Microchip's development tools, such as the MPLAB X IDE, to debug and analyze the device's behavior. If you're still experiencing issues, contact Microchip's technical support for assistance.
