DSC557-0334FI1 - Microchip

Description: Clock Generators & Support Products MEMS PCIe Clock Generator, -40C-85C, 50ppm

Download DSC557-0334FI1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

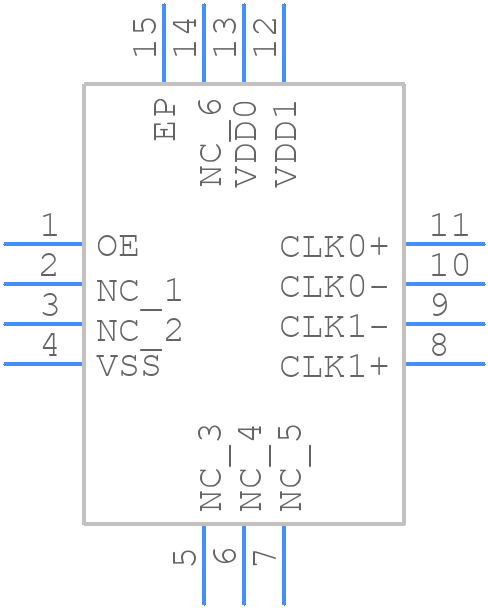

DSC557-0334FI1 - Microchip - PCB symbol
click to zoom
PCB Footprints
DSC557-0334FI1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-Lead VQFN 2.5 mm x 3.2 mm
click to zoom
3D Models
DSC557-0334FI1 - Microchip - 3D model - Quad Flat No-Lead - 14-Lead VQFN 2.5 mm x 3.2 mm
click to zoom

DSC557-0334FI1 Details

  • Manufacturer Part Number:

    DSC557-0334FI1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    VQFN-14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Additional Feature:

    MEMS CLOCK GENERATORS AS EXT CLOCK; PCIe Generation 1, 2, 3

  • JESD-30 Code:

    R-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    460 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, MEMS

DSC557-0334FI1 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock and data signals.
  • To optimize the clock signal, use a high-quality clock source with low jitter, and ensure the clock signal is properly terminated. Also, consider using a clock buffer or repeater to improve signal integrity.
  • The maximum operating temperature range for the DSC557-0334FI1 is -40°C to +125°C, but it's recommended to operate within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • To ensure reliable data transmission, use a reliable data transmission protocol, such as 8B/10B encoding, and implement error detection and correction mechanisms, such as CRC and ECC. Also, ensure proper signal termination and impedance matching.
  • The recommended power-up sequence is to apply power to the VDD and VDDQ pins simultaneously, followed by the clock signal. Ensure that the power supply is stable and within the recommended voltage range before applying the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DSC557-0334FI1 Overview

Use the download button to access the DSC557-0334FI1 schematic symbol, PCB footprint, and 3D model.
