OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT; THERMAL
Ripple Voltage (Main Out):
0.10605 Vrms
Screening Level:
IEC/UL 62368-1
Seated Height-Max:
14.478 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
436 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.07 s
Width:
22.86 mm
DSE0133V2NBC Frequently Asked Questions (FAQs)
Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The DSE0133V2NBC has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management, such as using thermal vias, thermal pads, and heat sinks. Additionally, ensure good airflow and avoid blocking the airflow around the component.
Murata recommends using a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component and ensure reliable connections.
To troubleshoot issues, start by verifying the PCB layout, component placement, and soldering quality. Check for any signs of physical damage, overheating, or electrical overstress. Use oscilloscopes and multimeters to measure voltage and current waveforms, and consult Murata's application notes and technical support resources for guidance.
Yes, the DSE0133V2NBC is a high-frequency component, and proper EMI shielding and filtering are crucial to ensure reliable operation. Murata recommends using EMI shielding materials, such as copper foil or metal cans, and implementing filtering components, like capacitors and inductors, to minimize electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSE0133V2NBC Overview

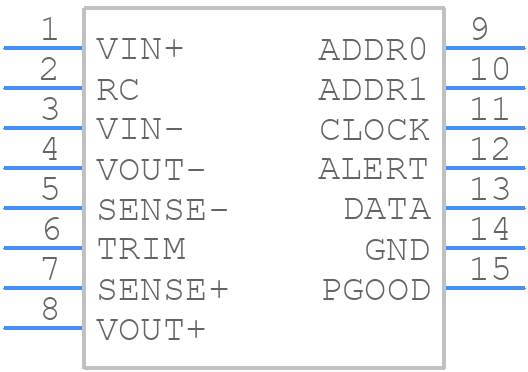

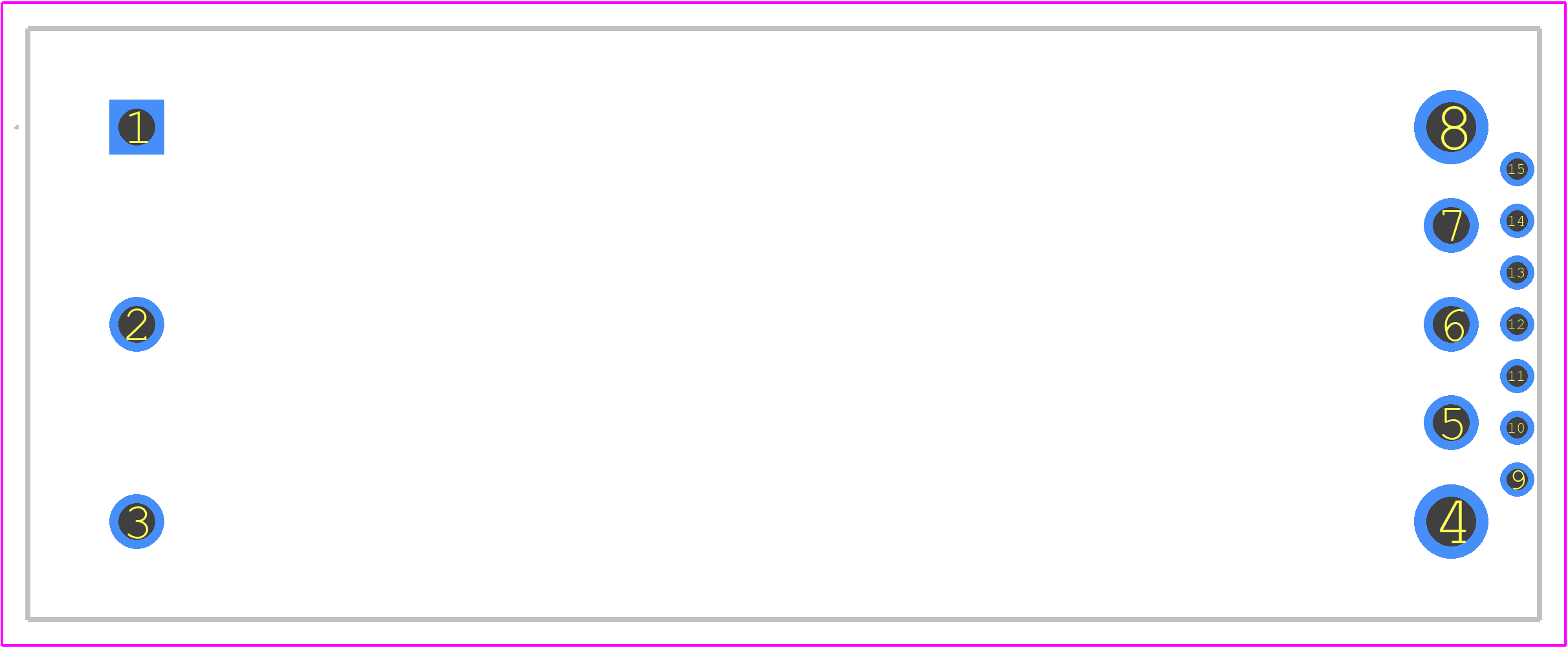

Use the download button to access the DSE0133V2NBC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSE01,
or try a keyword search, such as Power Supply Modules
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
